Products

AUTOMATION
AC/DC SPINDLE
DC/AC598

Speed Scope:6000~50000 rpm
Rated Rotation Speed:45000 rpm

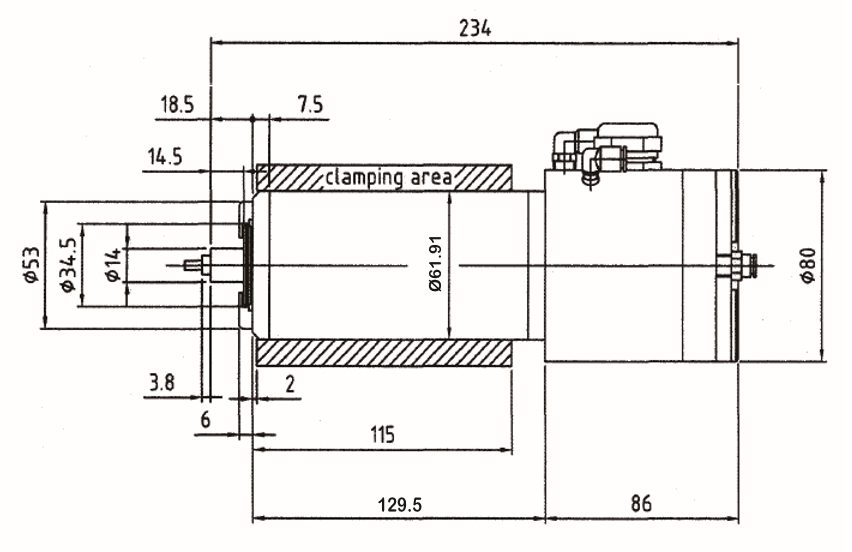

Housing Diameter:61.91mm
Length:234mm
Weight:3.8kg
Power:DC 2.5kw / AC 1.2kw
Voltage:220v
Current:3A
Poles:2p
Tool Chang Method:Pneumatic Direct Tool Change
Clamping :3.175、4、6mm
Clamping Force:300N
Run Out:<10um
Balance Grade:G1
Cooling:Water

Specification
