Products

Intermittent Precision Index
AD Precision Hollow Flat Type
7AD

Applications:
TFTs, solar panels, special purpose machinery &
equipment, screen printing
Properties:
Indexing accuracy of ±5~30sec.

Specification

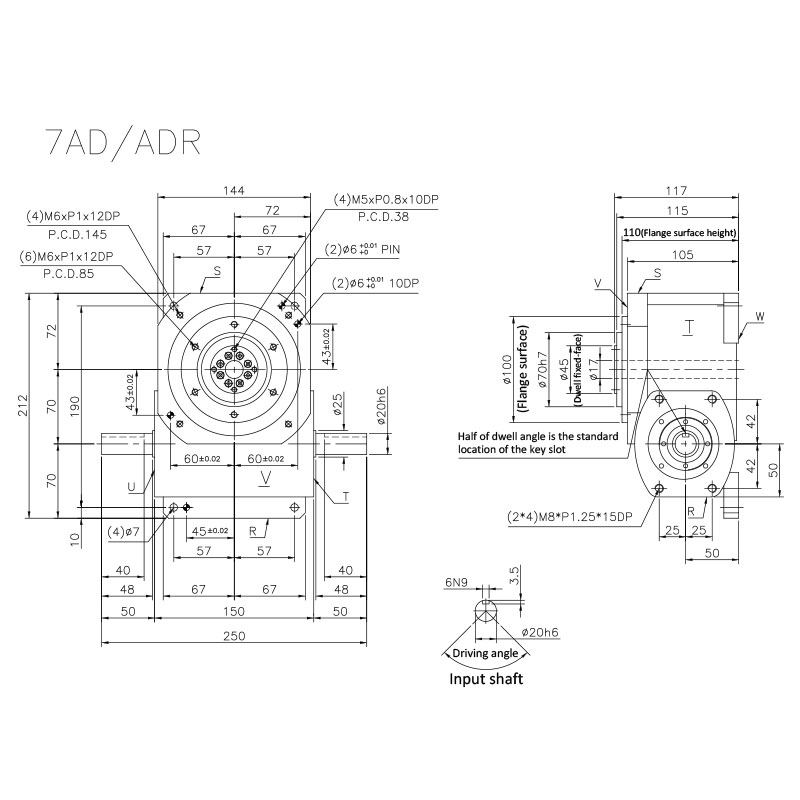

Dimensional Drawings

dimensional-drawings

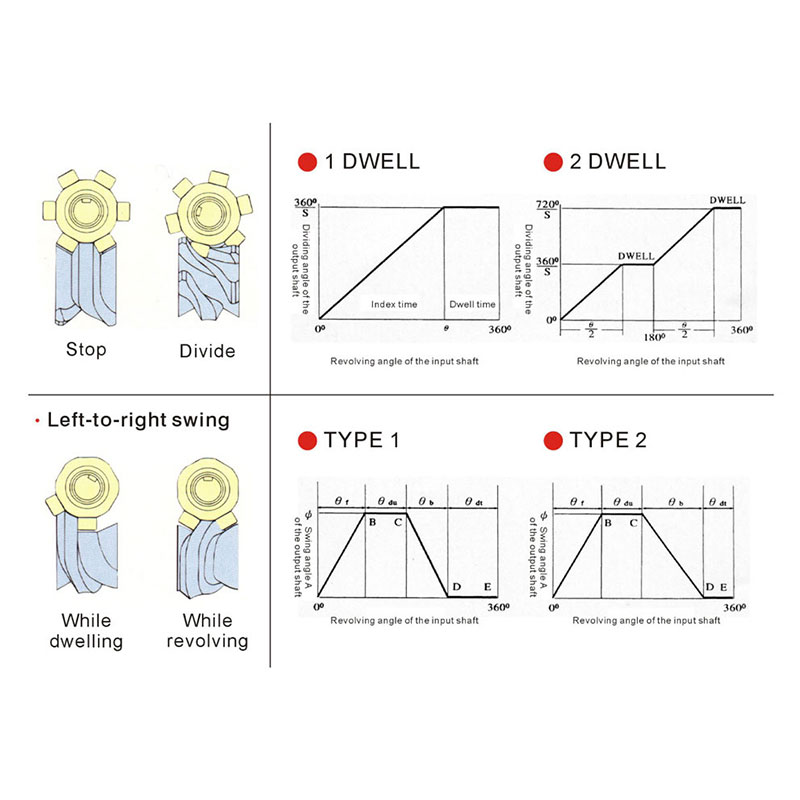

Movement Sequence Illustration

movement-sequence-illustration

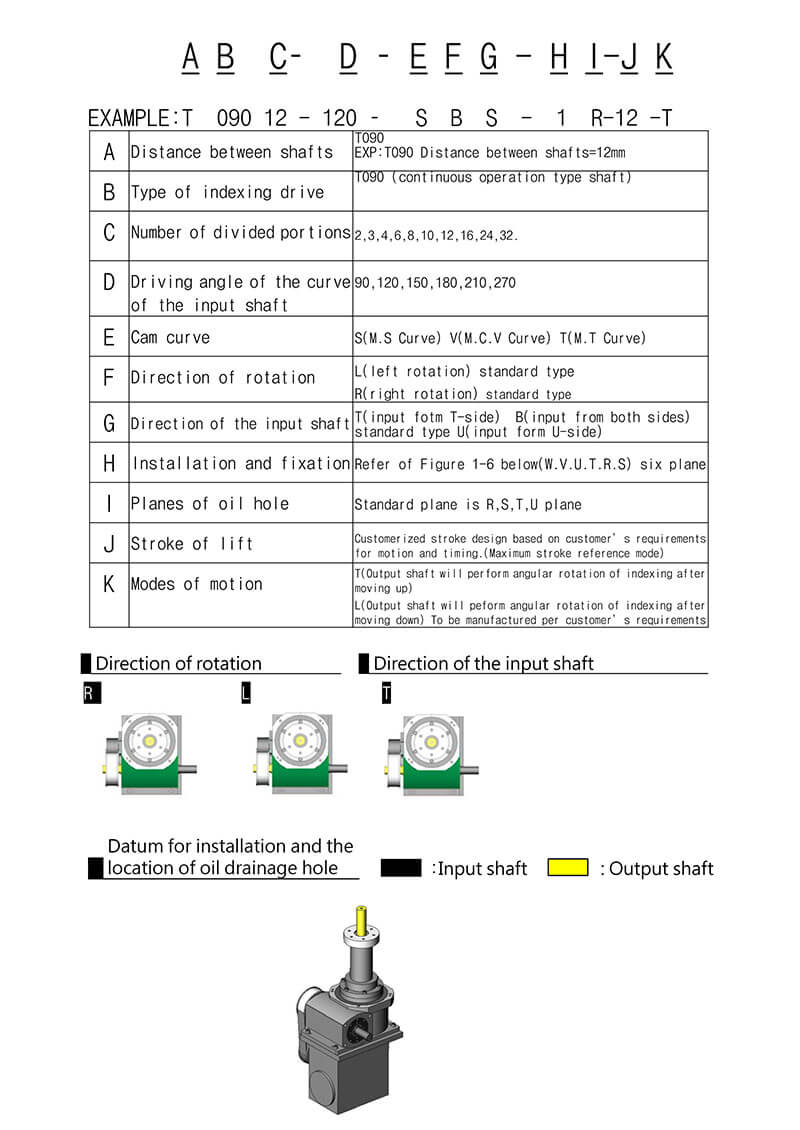

Specification Selection Explanations

specification-selection-explanations

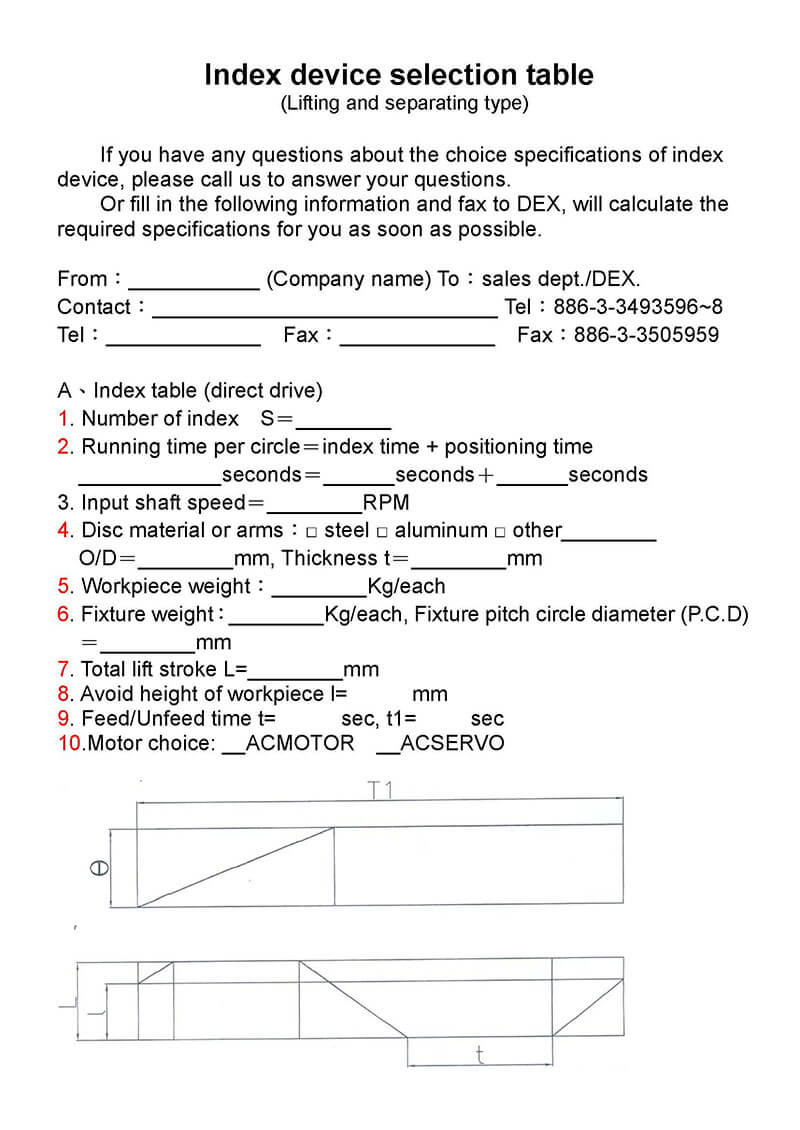

Diagram of Technical Support for Specifications

diagram-of-technical-support-for-specifications
