專業研磨工具

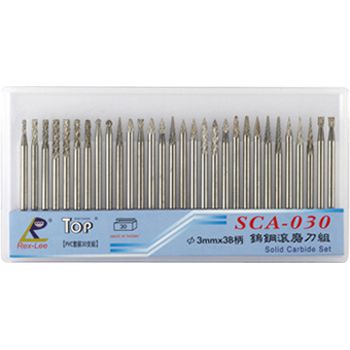

鎢鋼滾磨刀
鎢鋼滾磨刀
鎢鋼滾磨刀:刃徑 3mm，6mm，柄長38mm~150mm
之間可供選擇。高質量精確度的鎢鋼滾磨刀針對木材、
塑料、陶瓷、硬化鋼、不锈钢或
熱處理後的材料，提供各種不同形狀的刀削工具選擇。
規格數據
刃徑 ØD 3mm Shank Diameter / 38mm Overall Length
 |
||||||||
| Model No. | SA-41M | SA-42M | SA-43M | SB-43M | SC-41M | SC-42M | SD-41M | SD-42M |
| 刃徑 ØD | 1.5 | 2.5 | 3.0 | 3.0 | 2.5 | 3.0 | 2.5 | 3.0 |
| 刃長 T | 6 | 11 | 14 | 14 | 14 | 14 | 2.5 | 3.0 |
| 全長 L | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 |
 |
|||||||
| Model No. | SE-41M | SF-41M | SF-42M | SG-41M | SG-43M | SG-44M | SH-41M |
| 刃徑 ØD | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| 刃長 T | 5.5 | 6.0 | 12.0 | 6.0 | 10.0 | 12.0 | 6.0 |
| 全長 L | 38 | 38 | 38 | 38 | 38 | 38 | 38 |
 |
|||||||
| Model No. | SL-41M | SL-42M | SM-41M | SM-42M | SM-43M | SN-41M | SN-42M |
| 刃徑 ØD | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 2.5 | 3.0 |
| 刃長 T | 5.5 | 12.0 | 8.7 | 11.0 | 16.0 | 3.0 | 4.0 |
| 全長 L | 38 | 38 | 38 | 38 | 38 | 38 | 38 |
Ø3.0mm 柄徑: Large Heads ØB 4.0~6.0mm
刃徑 ØD 3mm Shank Diameter / 39~51Mm Overall Length
 |
|||||||
| Model No. | SA-52M SB-52M |
SA-53M SB-53M |
SC-52M | SC-53M | SD-52M | SD-53M | SE-53M |
| 刃徑 ØD | 4 | 5 | 4 | 5 | 4 | 5 | 5 |
| 刃長 T | 13 | 13 | 13 | 13 | 4 | 5 | 7.1 |
| 全長 L | 39 | 39 | 39 | 39 | 39 | 39 | 39 |
 |
||||||
| Model No. | SF-53M | SG-53M | SH-53M | SL-53M | SM-53M | SN-53M |
| 刃徑 ØD | 5 | 5 | 5 | 5 | 5 | 5 |
| 刃長 T | 13 | 13 | 9.5 | 13 | 13 | 6 |
| 全長 L | 39 | 39 | 39 | 39 | 39 | 39 |
 |
|||||
| Model No. | SA-51M | SA-51M/EC | SB-51M | SC-51M | SD-51M |
| 刃徑 ØD | 6 | 6 | 6 | 6 | 6 |
| 刃長 T | 12 | 12 | 4.7 | 12 | 6 |
| 全長 L | 51 | 51 | 51 | 51 | 51 |
 |
|||||
| Model No. | SE-51M | SF-51M | SG-51M | SM-51M | SN-51M |
| 刃徑 ØD | 6 | 6 | 6 | 6 | 6 |
| 刃長 T | 9.5 | 12 | 12 | 12 | 6 |
| 全長 L | 51 | 51 | 51 | 51 | 51 |
Note- ØB:Cutting Diameter T:Length Of Cut 刃徑 ØD:Shank Diameter L:Overall Length
