鎢鋼抗震刀柄系列

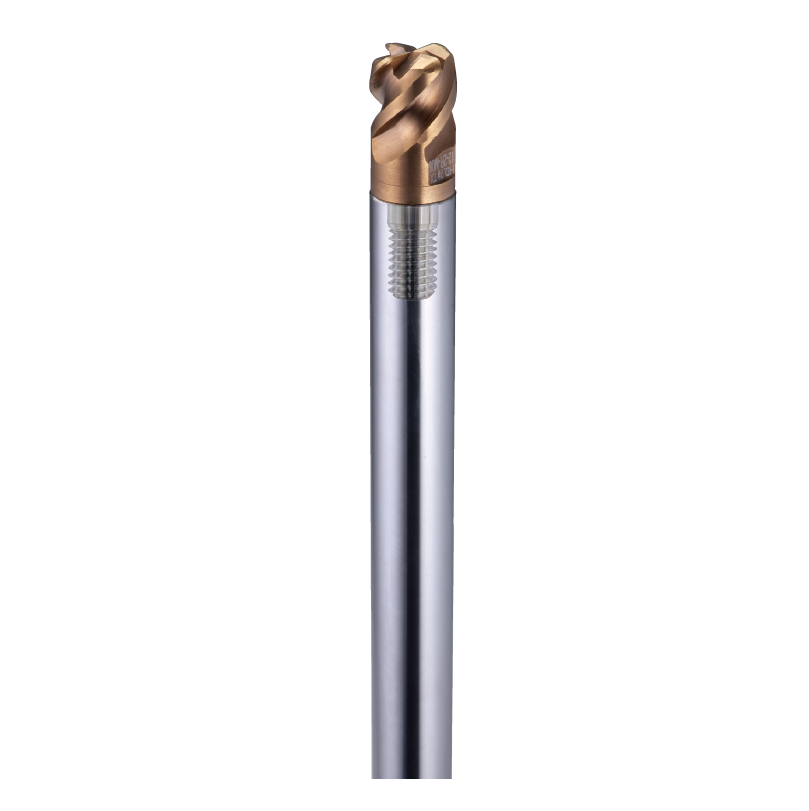

鎢鋼抗震刀柄
GL
1.使用全碳化鎢材質製成,剛性優異、吸震性佳、不會因橫向靖力過大,而扭曲變形。
2.延長加工深度,提升加工面精度,實現超長、超深、超高精度加工之可行性。
3.沒有焊接斷裂之虞慮,強調刀頭之多變化性,縱使刀頭損壞,立即更換即上線。
4.最大限度地減少產品及原物料的消耗。
備註:其他規格,請來電洽詢。
規格數據
產品編號 Model No. | Fig | L | M | D2 | D | D1 | L1 | a˚ |
GL06-06-060-M03 | 1 | 60 | M3*0.5 | 3.5 | 6 | 6 | ||
GL06-06-120-M03 | 1 | 120 | M3*0.5 | 3.5 | 6 | 6 | ||
GL08-08-060-M04 | 1 | 60 | M4*0.7 | 4.5 | 8 | 8 | ||
GL08-08-100-M04 | 1 | 100 | M4*0.7 | 4.5 | 8 | 8 | ||
GL08-08-120-M04 | 1 | 120 | M4*0.7 | 4.5 | 8 | 8 | ||
GL08-10-150-M04-DT60 | 2 | 150 | M4*0.7 | 4.5 | 10 | 7.8 | 60 | 1˚ |
GL08-08-075-M05 | 1 | 75 | M5*0.8 | 5.5 | 8 |
8 |
||
GL08-08-100-M05 | 1 | 100 | M5*0.8 | 5.5 | 8 |
8 |
||
GL08-08-120-M05 | 1 | 120 | M5*0.8 | 5.5 | 8 |
8 |
||
GL10-10-075-M05 | 1 | 75 | M5*0.8 | 5.5 | 10 | 10 | ||
GL10-10-100-M05 | 1 | 100 | M5*0.8 | 5.5 | 10 | 10 | ||
GL10-10-150-M05 | 1 | 150 | M5*0.8 | 5.5 | 10 | 10 | ||
GL10-12-150-M05-DT60 | 2 | 150 | M5*0.8 | 5.5 | 12 | 9.8 | 60 | 1˚ |
GL10-20-300-M05-DT135 | 2 | 300 | M5*0.8 | 5.5 | 20 | 9.8 | 135 | 2.15˚ |
GL12-12-075-M06 | 1 | 75 | M6*1.0 | 6.5 | 12 | 12 | ||
GL12-12-100-M06 | 1 | 100 | M6*1.0 | 6.5 | 12 | 12 | ||
GL12-12-150-M06 | 1 | 150 | M6*1.0 | 6.5 | 12 | 12 | ||
GL12-12-200-M06 | 1 | 200 | M6*1.0 | 6.5 | 12 | 12 | ||
GL12-16-150-M06-DT70 | 2 | 150 | M6*1.0 | 6.5 | 16 | 11.8 | 70 | 1.65˚ |
GL12-16-200-M06-DT90 | 2 | 200 | M6*1.0 | 6.5 | 16 | 11.8 | 90 | 1.3˚ |
GL12-16-250-M06-DT115 | 2 | 250 | M6*1.0 | 6.5 | 16 | 11.8 | 115 | 1˚ |
GL12-20-300-M06-DT135 | 2 | 300 | M6*1.0 | 6.5 | 20 | 11.8 | 135 | 1.7˚ |
GL16-16-100-M08 | 1 | 100 | M8*1.25 | 8.5 | 16 | 16 | ||
GL16-16-150-M08 | 1 | 150 | M8*1.25 | 8.5 | 16 | 16 | ||
GL16-16-200-M08 | 1 | 200 | M8*1.25 | 8.5 | 16 | 16 | ||
GL16-16-250-M08 | 1 | 250 | M8*1.25 | 8.5 | 16 | 16 | ||
GL16-20-200-M08-DT90 | 2 | 200 | M8*1.25 | 8.5 | 20 | 15.5 | 90 | 1.3˚ |
GL16-20-250-M08-DT115 | 2 | 250 | M8*1.25 | 8.5 | 20 | 15.5 | 115 | 1˚ |
GL16-20-300-M08-DT135 | 2 | 300 | M8*1.25 | 8.5 | 20 | 15.5 | 135 | 0.85˚ |
GL20-20-100-M10 | 1 | 100 | M10*1.5 | 10.5 | 20 | 20 | ||
GL20-20-150-M10 | 1 | 150 | M10*1.5 | 10.5 | 20 | 20 | ||
GL20-20-200-M10 | 1 | 200 | M10*1.5 | 10.5 | 20 | 20 | ||
GL20-20-250-M10 | 1 | 250 | M10*1.5 | 10.5 | 20 | 20 | ||
GL20-20-300-M10 | 1 | 300 | M10*1.5 | 10.5 | 20 | 20 | ||
GL20-20-400-M10 | 1 | 400 | M10*1.5 | 10.5 | 20 | 20 | ||
GL20-25-200-M10-DT90 | 2 | 200 | M10*1.5 | 10.5 | 25 | 19.8 | 90 | 1.6˚ |
GL20-25-250-M10-DT115 | 2 | 250 | M10*1.5 | 10.5 | 25 | 19.8 | 115 | 1.25˚ |
GL20-25-300-M10-DT135 | 2 | 300 | M10*1.5 | 10.5 | 25 | 19.8 | 135 | 1.1˚ |
GL25-25-100-M12 | 1 | 100 | M12*1.75 | 12.5 | 25 | 25 | ||
GL25-25-150-M12 | 1 | 150 | M12*1.75 | 12.5 | 25 | 25 | ||
GL25-25-200-M12 | 1 | 200 | M12*1.75 | 12.5 | 25 | 25 | ||
GL25-25-250-M12 | 1 | 250 | M12*1.75 | 12.5 | 25 | 25 | ||
GL25-25-300-M12 | 1 | 300 | M12*1.75 | 12.5 | 25 | 25 | ||
GL25-25-350-M12 | 1 | 350 | M12*1.75 | 12.5 | 25 | 25 | ||
GL25-32-200-M12-DT90 | 2 | 200 | M12*1.75 | 12.5 | 32 | 24.5 | 90 | 2.3˚ |
GL25-32-250-M12-DT115 | 2 | 250 | M12*1.75 | 12.5 | 32 | 24.5 | 115 | 1.75˚ |
GL25-32-300-M12-DT135 | 2 | 300 | M12*1.75 | 12.5 | 32 | 24.5 | 135 | 1.5˚ |
GL32-32-150-M16 | 1 | 150 | M16*2.0 | 17 | 32 | 32 | ||
GL32-32-200-M16 | 1 | 200 | M12*1.75 | 17 | 32 | 32 | ||
GL32-32-250-M16 | 1 | 250 | M16*2.0 | 17 | 32 |
32 |
||
GL32-32-300-M16 | 1 | 300 | M16*2.0 | 17 | 32 |
32 |
||
GL32-32-400-M16 | 1 | 400 | M16*2.0 | 17 | 32 |
32 |
||
GL42-42-250-M20 | 1 | 250 | M20*2.5 | 21 | 42 |
42 |
||
GL42-42-300-M20 | 1 | 300 | M20*2.5 | 21 | 42 |
42 |
||
GL42-42-400-M20 | 1 | 400 | M20*2.5 | 21 | 42 |
42 |
||
GL42-42-500-M20 | 1 | 500 | M20*2.5 | 21 | 42 |
42 |
