自動夾頭系列

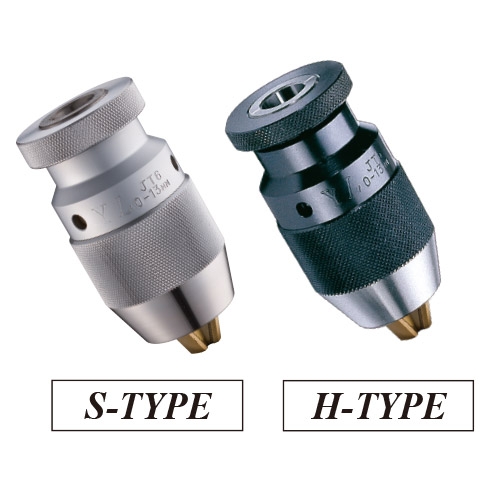

S-TYPE 特重型系列
S-TYPE 特重型系列
Extremely high accuracy and precision design, suitable for CNC machining and machining center. All parts are ground, heat treated, surface treated and under specific QC condition.
規格數據
| Description / Code No. | Size | Capacity |
Taper Mount No. DIN or Jacobs |
Length (mm) | Outer Dia.(mm) | Weight(g) | ||
| mm | inch | Open | Closed | |||||
| 12200 | 3S | 0.3-3 | 1/64-1/8 | JT0 | 45 | 48 | 25 | 120 |
| 12201 | 6S | 0.3-6 | 1/64-1/4 | JT1 | 63 | 69 | 34 | 310 |
| 12201-1 | 8S | 0.3-8 | 1/64-5/16 | JT1 | 68 | 76 | 38 | 395 |
| 12202-1 | 10S | 0.3-10 | 1/64-3/8 | JT2 | 80 | 92 | 43 | 610 |
| 12202-4 | 10S | 0.3-10 | 1/64-3/8 | B12 | 80 | 92 | 43 | 610 |
| 12203-2 | 13S | 0.3-13 | 1/64-1/2 | JT6 | 90 | 102 | 49 | 920 |
| 12203-4 | 13S | 0.3-13 | 1/64-1/2 | B16 | 90 | 102 | 49 | 920 |
| 12205-1 | 16S | 3-16 | 1/8-5/8 | JT6 | 97 | 110 | 55 | 1200 |
| 12205-2 | 16S | 3-16 | 1/8-5/8 | JT3 | 97 | 110 | 55 | 1200 |
| 12205-4 | 16S | 3-16 | 1/8-5/8 | B18 | 97 | 110 | 55 | 1200 |
H-TYPE 重型系列
Industrial design especially for milling machines and drilling machines.
All hardened parts ensure long life and safety while in operation.
| Description / Code No. | Size | Capacity |
Taper Mount No.DIN or Jacobs |
Length (mm) | Outer Dia.(mm) | Weight(g) | ||
| mm | inch | Open | Closed | |||||
| 12302-1 | 8H | 0.3-8 | 1/64-5/16 | JT1 | 68 | 76 | 38 | 395 |
| 12303-2 | 10H | 0.3-10 | 1/64-3/8 | JT2 | 80 | 92 | 43 | 610 |
| 12303-4 | 10H | 0.3-10 | 1/64-3/8 | B12 | 80 | 92 | 43 | 610 |
| 12304-4 | 13H | 0.3-13 | 1/64-1/2 | B16 | 90 | 102 | 49 | 920 |
| 12304-5 | 13H | 0.3-13 | 1/64-1/2 | JT6 | 90 | 102 | 49 | 920 |
| 12304-1 | 16H | 3-16 | 1/8-5/8 | JT6 | 97 | 110 | 55 | 1200 |
| 12304-2 | 16H | 3-16 | 1/8-5/8 | JT3 | 97 | 110 | 55 | 1200 |
| 12305-4 | 16H | 3-16 | 1/8-5/8 | B18 | 97 | 110 | 55 | 1200 |

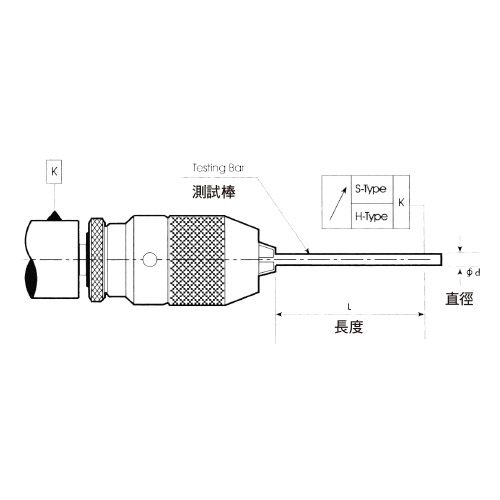

鑽夾頭同心度檢驗表
| Type | ∮dmm | L mm | S Type↗ | H Type↗ | |
  |
3S | 1.5 | 30 | 0.05 | 0.07 |
| 3 | 30 | 0.05 | 0.07 | ||
| 6S | 3 | 35 | 0.05 | 0.07 | |
| 4 | 35 | 0.05 | 0.07 | ||
| 6 | 35 | 0.05 | 0.07 | ||
| 8S | 4 | 35 | 0.05 | 0.07 | |
| 6 | 35 | 0.05 | 0.07 | ||
| 8 | 50 | 0.05 | 0.07 | ||
| 10S | 5 | 35 | 0.05 | 0.07 | |
| 6 | 35 | 0.05 | 0.07 | ||
| 10 | 58 | 0.05 | 0.07 | ||
| 13S | 6 | 55 | 0.05 | 0.07 | |
| 10 | 55 | 0.05 | 0.07 | ||
| 13 | 75 | 0.05 | 0.07 | ||
| 16S | 6 | 55 | 0.05 | 0.07 | |
| 10 | 55 | 0.05 | 0.07 | ||
| 16 | 80 | 0.05 | 0.07 |
