刀桿

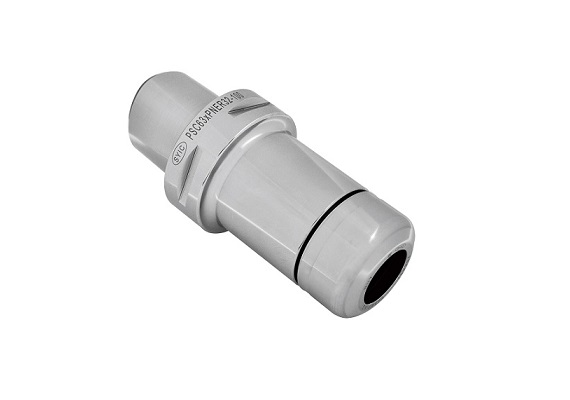

筒夾式刀桿-PNER立銑刀夾頭
BT/PNER
● 系統偏擺精度3μ。
● PNER 刀桿前端螺紋上下直部設計，使公差更為精準，加上搭配的PN筒夾，置入刀桿後包覆性佳，提升整體偏擺精度及加工穩定性。
● 不僅適用於精加工，用於重切削也有威力十足的表現。
● 搭配使用PN筒夾：偏擺精度3μm。
● PNER 螺帽無溝槽設計，減少在高速運轉下產生風切，避免由風切造成的振刀情形。
規格數據
BT/PNER立銑刀夾頭
| MODEL NO. | TYPE | L | l1 | l2 | d1 | d2 | T | SIZE RANGE |
WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|---|---|
| 16704 | BT30 x PNER16 - 50 | 98.4 | 50 | 25 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 0.80 |
| 16704 - 70 | BT30 x PNER16 - 70 | 118.4 | 70 | 47 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 0.70 |
| 16706 | BT30 x PNER20 - 60 | 108.4 | 60 | 37 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 0.80 |
| 16708 | BT30 x PNER25 - 60 | 108.4 | 60 | 37 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 0.90 |
| 16710 | BT30 x PNER32 - 60 | 108.4 | 60 | 33 | 50 | 50 | - | 3 ~ 20 | 1.00 |
| 16714 | BT40 x PNER16 - 70 | 135.4 | 70 | 40 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 1.12 |
| 16714 - 130 | BT40 x PNER16 - 130 | 195.4 | 130 | 93 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 1.36 |
| 16714 - 160 | BT40 x PNER16 - 160 | 225.4 | 160 | 123 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 1.49 |
| 16716 | BT40 x PNER20 - 70 | 135.4 | 70 | 40 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 1.14 |
| 16716 - 130 | BT40 x PNER20 - 130 | 195.4 | 130 | 93 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 1.41 |
| 16716 - 160 | BT40 x PNER20 - 160 | 225.4 | 160 | 123 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 1.56 |
| 16718 | BT40 x PNER25 - 70 | 135.4 | 70 | 40 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 1.19 |
| 16718 - 130 | BT40 x PNER25 - 130 | 195.4 | 130 | 98 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 1.66 |
| 16718 - 160 | BT40 x PNER25 - 160 | 225.4 | 160 | 128 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 1.92 |
| 16720 | BT40 x PNER32 - 70 | 135.4 | 70 | 40 | 50 | 50 | M16 x 2.0P | 3 ~ 20 | 1.20 |
| 16720 - 130 | BT40 x PNER32 - 130 | 195.4 | 130 | 100 | 50 | 50 | M16 x 2.0P | 3 ~ 20 | 2.07 |
| 16720 - 160 | BT40 x PNER32 - 160 | 225.4 | 160 | 130 | 50 | 50 | M16 x 2.0P | 3 ~ 20 | 2.49 |
| 16722 | BT40 x PNER40 - 70 | 135.4 | 70 | 38 | 63 | 63 | M20 x 2.0P | 6 ~ 26 | 1.40 |
| 16728 | BT50 x PNER16 - 70 | 171.8 | 70 | 29 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 3.00 |
| 16728 - 130 | BT50 x PNER16 - 130 | 231.8 | 130 | 82 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 3.88 |
| 16728 - 160 | BT50 x PNER16 - 160 | 261.8 | 160 | 112 | 30 | 30 | M10 x 1.5P | 3 ~ 10 | 4.01 |
| 16730 | BT50 x PNER20 - 70 | 171.8 | 70 | 29 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 3.00 |
| 16730 - 130 | BT50 x PNER20 - 130 | 231.8 | 130 | 82 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 3.91 |
| 16730 - 160 | BT50 x PNER20 - 160 | 261.8 | 160 | 112 | 32 | 32 | M12 x 1.75P | 3 ~ 13 | 4.06 |
| 16732 | BT50 x PNER25 - 70 | 171.8 | 70 | 29 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 3.93 |
| 16732 - 130 | BT50 x PNER25 - 130 | 231.8 | 130 | 82 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 4.06 |
| 16732 - 160 | BT50 x PNER25 - 160 | 261.8 | 160 | 112 | 40 | 40 | M16 x 2.0P | 3 ~ 16 | 4.27 |
| 16734 | BT50 x PNER32 - 70 | 171.8 | 70 | 31 | 50 | 50 | M16 x 2.0P | 3 ~ 20 | 4.12 |
| 16734 - 130 | BT50 x PNER32 - 130 | 231.8 | 130 | 82 | 50 | 50 | M16 x 2.0P | 3 ~ 20 | 4.43 |
| 16734 - 160 | BT50 x PNER32 - 160 | 261.8 | 160 | 112 | 50 | 50 | M16 x 2.0P | 3 ~ 20 | 4.80 |
| 16736 | BT50 x PNER40 - 80 | 181.8 | 80 | 39 | 63 | 63 | M20 x 2.0P | 6 ~ 26 | 4.20 |
| 16736 - 130 | BT50 x PNER40 - 130 | 231.8 | 130 | 82 | 63 | 63 | M20 x 2.0P | 6 ~ 26 | 4.97 |
| 16736 - 160 | BT50 x PNER40 - 160 | 261.8 | 160 | 112 | 63 | 63 | M20 x 2.0P | 6 ~ 26 | 5.61 |
