產品介紹
規格數據

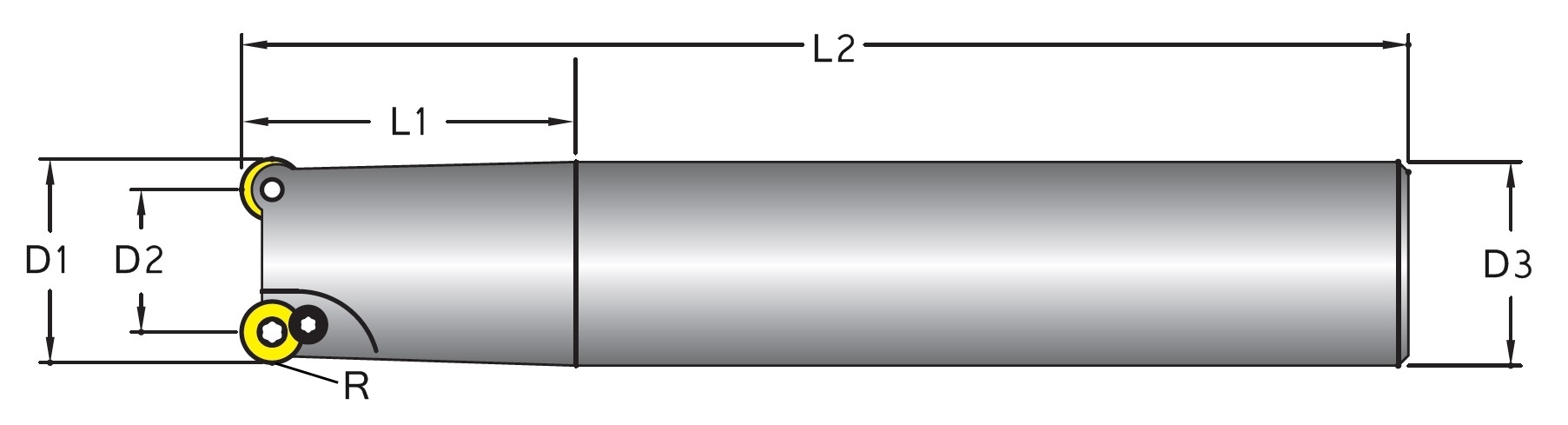

產品編號 | 外徑D1 | 中心距D2 | 有效長L1 | R值 | 刃數 | 柄徑D3 | 全長L2 | 刀片型號 | 刀片螺絲 | 扳手 | 傘型螺絲 |
DHRD4-12-1C-12-120 | 12 | 4 | 25 | 4 | 1 | 12 | 120 | RDMT0802 | M3 | T08 | M-4R |
DHRD4-16-1C-16-120 | 16 | 8 | 25 | 4 | 1 | 16 | 120 | RDMT0802 | M3 | T08 | M-4R |
DHRD4-20-2C-20-150 | 20 | 12 | 25 | 4 | 2 | 20 | 150 | RDMT0802 | M3 | T08 | M-5R |
DHRD4-25-2C-25-150 | 25 | 17 | 25 | 4 | 2 | 25 | 150 | RDMT0802 | M3 | T08 | M-5R |
DHRD5-20-2C-20-150 | 20 | 10 | 25 | 5 | 2 | 20 | 150 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-25-2C-25-150 | 25 | 15 | 35 | 5 | 2 | 25 | 150 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-25-2C-25-200 | 25 | 15 | 35 | 5 | 2 | 25 | 200 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-30-2C-25-150 | 30 | 20 | 35 | 5 | 2 | 25 | 150 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-30-2C-25-200 | 30 | 20 | 35 | 5 | 2 | 25 | 200 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-30-2C-25-250 | 30 | 20 | 35 | 5 | 2 | 25 | 250 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-35-3C-32-150 | 35 | 25 | 35 | 5 | 3 | 32 | 150 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-40-3C-32-150 | 40 | 30 | 35 | 5 | 3 | 32 | 150 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-40-3C-32-200 | 40 | 30 | 35 | 5 | 3 | 32 | 200 | RDMT10T3 | M4 | T15 | M-5R |
DHRD5-40-3C-32-250 | 40 | 30 | 35 | 5 | 3 | 32 | 250 | RDMT10T3 | M4 | T15 | M-5R |
DHRD8-50-3C-32-250 | 50 | 34 | 50 | 8 | 3 | 32 | 250 | RDMX 1604 | M5 | T20 | M-8R |
