Y 軸 系列

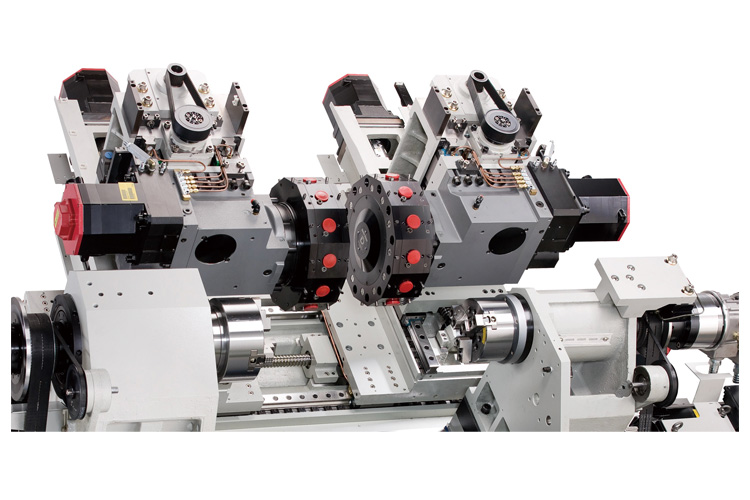

雙主軸雙 Y 軸刀塔臥式車床
FCL - 15 TTY

產品特點
此系列之機台為 45 度斜背式,具有高效率除屑外支撐也較為穩固。
X、Y、Z 軸為滾柱線軌。
高精度直角90度正交Y軸,編輯程式更容易。

規格數據

產品規格
床身上旋徑 Ø 740 mm ( 29.13” )
最大切削直徑 Ø 300 mm ( 11.81” )
最大加工長度 290 mm ( 11.41” )
主軸鼻端 Main: A2 - 5
Sub : A2 - 5
棒材孔徑 Ø 45 mm ( 1.77” )
ø 45 mm ( 1.77” )
油壓夾頭 Ø 169 mm ( 6” )
Ø 169 mm ( 6” )
X軸行程
Z軸行程
Y軸行程
E軸行程 520mm ( 20.47” )

標準配備

Feature

  • Major machine parts, such as base, saddle, headstock, slide and sub spindle are made of Meehanite cast iron. They are tempered to relieve stress thereby ensuring lifetime accuracy.
  • High performance servo motors are directly coupled to the pre-tensioned ball screws.
  • Linear guide way on X and Z axes has fewer friction and faster feed rate.
  • ox guide way on B axis has higher rigidity.
  • 45 degrees slant bed constriction features efficient chip removal and firm support.




Controller : FANUC、SIEMENS、FAGOR


FANUC Controller (Std.)


SIEMENS Controller (Opt.)


FAGOR controller (Opt.)




SKF Precision Spindle and P4 precision bearings :

The cartridge type is conveniently removed allowing for convenient servicing. The spindle runs on class P4 precision bearings providing high axial thrust capability and superior radial stability. This ensures high precision during heaving duty turning.




Fast Turret Indexing :

FCL - TS / TT series turret

The 12 position turret features bi-directional random tool selection. Fast indexing time is 0.6 seconds.

FCL - S series : hydraulic turret

Twin spindle series enables the entire workpiece to be machined at one time.
