www.minchen-tw.com產品介紹
規格數據

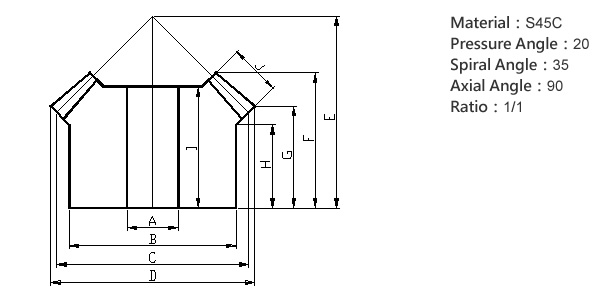

標準型螺旋傘齒輪規格
| 規格 | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| M1.5×20T×20T | 10 | 26 | 30 | 31.8 | 30 | 21.14 | 15.9 | 13 | 19 | 8 |
| M2.0×20T×20T | 12 | 34 | 40 | 42.4 | 37 | 24.75 | 18.2 | 14 | 22 | 10 |
| M2.5×20T×20T | 15 | 42 | 50 | 53.01 | 48 | 32.37 | 24.5 | 19 | 29 | 12 |
| M3.0×20T×20T | 20 | 50 | 60 | 63.61 | 58 | 39.63 | 29.8 | 23 | 35 | 15 |
| M3.5×20T×20T | 20 | 60 | 70 | 74.21 | 65 | 43.9 | 32.1 | 25 | 40 | 18 |
| M4.0×20T×20T | 25 | 64 | 80 | 84.81 | 75 | 50.51 | 37.4 | 27 | 45 | 20 |
| M5.0×20T×20T | 25 | 80 | 100 | 106.01 | 90 | 60.04 | 43.01 | 30 | 54 | 26 |
| M6.0×20T×20T | 25 | 100 | 120 | 127.21 | 104 | 67.26 | 47.61 | 34 | 60 | 30 |
標準型螺旋傘齒輪規格
| 規格 | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| M3.0×24T×24T | 20 | 60 | 72 | 75.61 | 58.5 | 37.58 | 24.3 | 16.5 | 34 | 20 |
| M4.0×24T×24T | 25 | 80 | 96 | 100.81 | 78.0 | 49 | 32.4 | 22 | 43 | 25 |
| M2.0×20T ×40T |
12 12 |
32 40 |
40 80 |
44.09 81 |
60 45 |
34.04 32.26 |
21.02 26 |
18 18 |
32 27 |
15 |
| M2.5×20T ×40T |
12 15 |
40 50 |
50 100 |
55.2 101.25 |
75 55 |
43.63 39.59 |
26.28 31.25 |
22.5 20 |
40 34 |
20 |
| M3.0×20T ×40T |
16 20 |
50 60 |
60 120 |
66.13 121.5 |
90 65 |
50.62 45.68 |
31.53 36.5 |
27.5 24 |
47 38 |
22 |
標準型螺旋傘齒輪規格
| 規格 | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| M1.5×25T×25T | 10 | 30 | 37.5 | 39.3 | 34 | 22.14 | 16.15 | 11.5 | 19 | 9 |
| M2.0×25T×25T | 12 | 40 | 50.0 | 52.4 | 40 | 24.19 | 16.2 | 10.0 | 20 | 12 |
| M2.5×25T×25T | 15 | 50 | 62.5 | 65.51 | 50 | 30.24 | 20.25 | 12.5 | 26 | 15 |
| M3.0×25T×25T | 20 | 60 | 75.0 | 78.61 | 60 | 37.61 | 24.3 | 15.0 | 32 | 20 |
| M3.5×25T×25T | 20 | 70 | 87.5 | 91.71 | 70 | 43 | 28.35 | 17.5 | 37 | 22 |
| M4.0×25T×25T | 25 | 80 | 100 | 104.81 | 80 | 49.04 | 32.4 | 20.0 | 43 | 25 |
| M5.0×25T×25T | 25 | 100 | 125 | 131.01 | 100 | 60.47 | 40.51 | 25.0 | 50 | 30 |
| M6.0×25T×25T | 25 | 120 | 150 | 157.21 | 120 | 71.9 | 47.61 | 30.0 | 61 | 35 |
標準型螺旋傘齒輪規格
| 規格 | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| M1.5×30T×30T | 10 | 36 | 45 | 46.8 | 43 | 28.13 | 21.4 | 16 | 25 | 10 |
| M2.0×30T×30T | 15 | 45 | 60 | 62.4 | 50 | 29.27 | 21.2 | 12.5 | 25 | 12 |
| M2.5×30T×30T | 15 | 60 | 75 | 78.01 | 62 | 36.09 | 26 | 17 | 32 | 15 |
| M3.0×30T×30T | 20 | 70 | 90 | 93.61 | 75 | 45.25 | 31.8 | 20 | 40 | 20 |
| M3.5×30T×30T | 20 | 90 | 105 | 109.21 | 85 | 49.4 | 34.6 | 25 | 45 | 22 |
| M4.0×30T×30T | 25 | 100 | 120 | 124.81 | 95 | 54.22 | 37.4 | 25 | 50 | 25 |
| M5.0×30T×30T | 25 | 130 | 150 | 156.01 | 120 | 68.18 | 48.01 | 35 | 62 | 30 |
| M6.0×30T×30T | 25 | 160 | 180 | 187.21 | 145 | 84.16 | 58.61 | 45 | 75 | 38 |
