Caps & Closures Molds

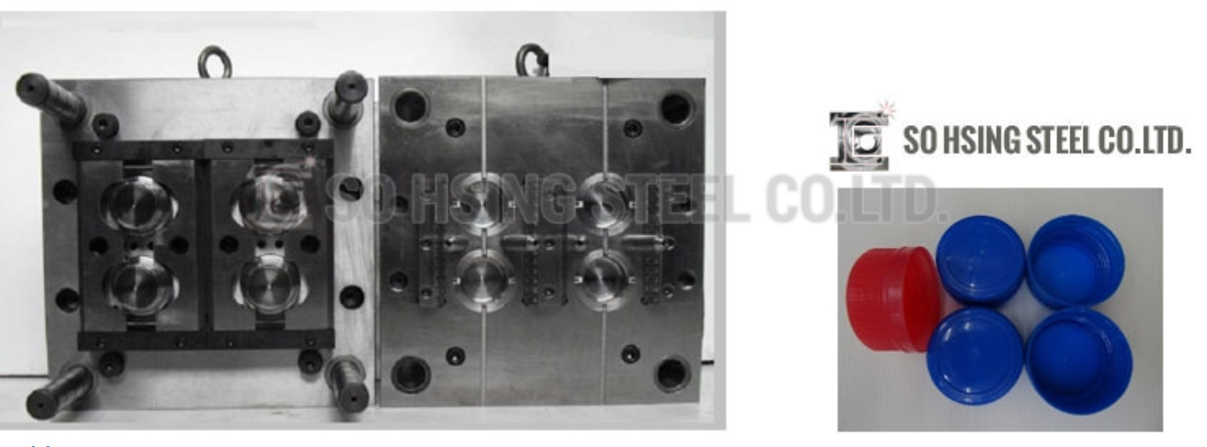

Cap 5L 4 Cavity

Specification

Mold

Name: PE Cap
No. of Cavity: 4
SSG Full Hot Runner Mold: Pin Gate
Mold Base Steel: P20 HRC 28-32
Cavity Core Steel: SKD61 or Stavax 420 HRC 48-50
Size: (mm) 400 x 370 x 400
Weight: 388 Kg
Estimation Cycle Time: 8 sec approx.
Suitable IMM : Taiwan 250DHIII

Product

Name: PE Cap
Capacity: 5L
Size: (mm) D: Ø50.18 H: 23.77 T:1.1
Resin: PE
Weight: 5.5g approx.
