Product Model: HD Series

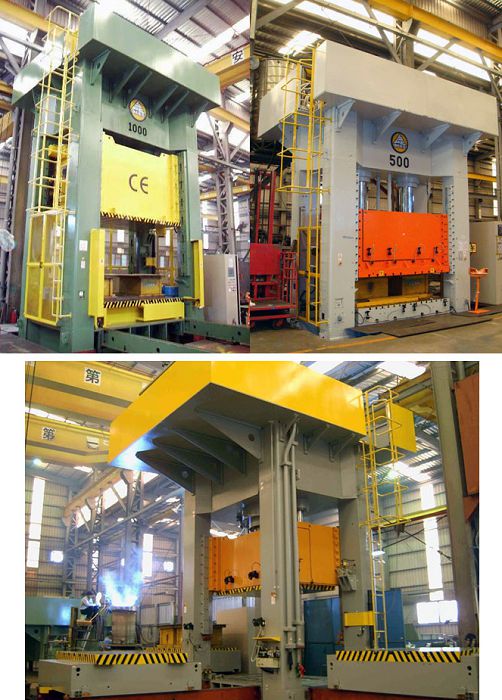

SPC DEES Deep Drawing Press offers customizable sizes with the option for different method of movement. Our hydraulic equipment is specially designed for deep drawing and forming metal plats, our machines are guaranteed to offer high accuracy performance and extended service life. SPC Deep Drawing Press is also designed with easy maintenance and safe controls to reduce the necessity of excess manpower while guaranteeing safe operations.

SPC equipment units are manufactured under strict quality control process to ensure the best quality, accuracy, and reliability for our clients. Additional options for SPC Deep Drawing Press include integration of high pressure resistance high velocity flow variable piston pumps as well as multiple types of touch screen controller to raise manufacturing standards.

Specifications:

• Standard Accessories
  • Computerized optimism frame design by Finite Element Analysis.
  • Cylinder tube and piston roe all with one-piece design to ensure service lifetime, harden rod surface and fine ground.
  • Maintenance-Free and adjustable eight-point oil less guiding plates.
  • Smooth operation at high speed.
  • Overload protection valves.
  • Efficiently designed hydraulic circuit block with less pipes and connection.
  • Programmable logic controller and European standard electric components.
  • Accessible open side-frame suitable for automation equipment front to back or left to right.
  • Adjustable daylight speed change point cushion stroke easy operation and fast set up via limit switches control.
  • Slide and cushion position controlled by limit switch.
  • Front side T-stand.
  • Front side safety light curtain.
  • Oil temperature readout on the panel.
  • Oil cooler (cooling water type).
  • Pressure switch.
  • T-slotted slide and bolster.
  • Interlocked safety die block.
  • Central lubrication system.
  • Cushion pin supplied.
• Optional Accessories of the Deep Drawing Press
  • Color NC Touch Screen with Linear Transducer.
  • Logic valve circuit complied with NC Touch Screen and Linear Transducer repeatability can reach 0.1L
  • Two sides safety light curtain or PSDI control system Hydraulic Ejector in Slide.
  • Stand alone oil heat exchanger.
  • Ram Lock Device

Optional devices:

• Quick Die Chang System (Q.D.C.S.).
• Moving Bolsters.
• Punching Dampers.
• Feeding system.
• Transfer system.
• Autamation system.
• Fully compliance with CE standard or other safety regulations.
