Quick Manual Chucks series

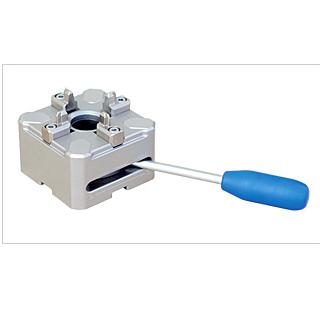

QM-68E Manual Quick Chuck for Milling machine
QM-68E


  • 3-jaws type Mechanism

  • Clamping power : 1000kgs  Lifting tests

  • Repeat positioning accuracy : 2µm

  • Not suitable for EDM.

  • Two ground surfaces are available for clamping by milling vise.

  • Weight : 1.2kgs

  • Material : SUS420J2 52 HRC


Specification

Chuck Size

Mold
Machine
Vehicle
