Drilling Machine
Labor Saving Automatic Air-Hydro Machine

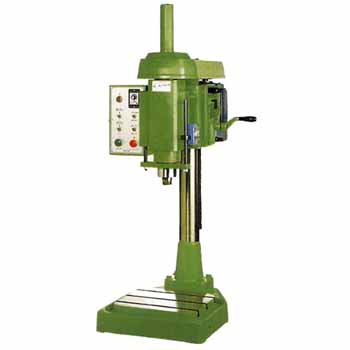

AS-160


  • Automatic, labor saving equipment: several machines can be operated by one person.

  • Cycle of start --> Rapid approach --> Work feed --> Rapid return --> Stop.

  • All the machines shown on this ad. are available with multiple spindle heads that will increase the efficiency by 5-10 times.

  • It can be settled in any direction and position to reduce manufacturing cost and make quality unique.

  • Can be assembled with automatic tapping machines for special work projects (Accomplishines boring and tapping at one station).


Specification

Item No. - AS-160V AS-160
Drilling Capacity mm CastironØ25 SteelØ19 CastironØ25 SteelØ19
Spindle Stroke mm 160 160
Thrust kgs 473 473
Taper of Spindle mm MT-3 MT-3
50Hz Spindle Speed r.p.m. 6P(280, 430, 660, 980)
4P(420, 660, 1010, 1500)		 6P(280, 430, 660, 980)
4P(420, 660, 1010, 1500)
60Hz Spindle Speed (6P) r.p.m. 6P(340,,525, 810, 1200)
4P(500, 780, 1200, 1780)		 6P(340,,525, 810, 1200)
4P(500, 780, 1200, 1780)
Motor Rating power 3Ø * 0.75KW (1HP) * 6P
3Ø * 0.75KW (1HP) * 4P		 3Ø * 0.75KW (1HP) * 6P
3Ø * 0.75KW (1HP) * 4P
Working Air Pressurd kg/cm 2 5.5 kg/cm 2 5.5 kg/cm 2
Rapid Approch m/min 3 3
Weight (Approx) kgw 300 105
