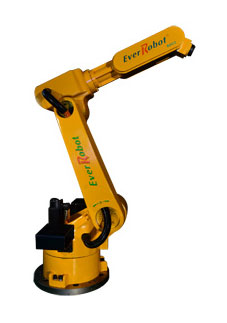

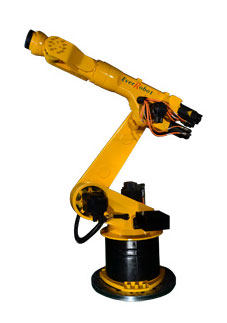

Six-axis robotic arm
CNC Robot Arm
RH06,RH12,RH20
CNC Robot Arm
Low Payloads (6/12/20KG)
EverRobot with low payloads are particularly suitable for small-scale activities sush as component testing, assembly of small parts, or grinding, polishing and bonding
Specification
| Model | RH06 | RH12 | RH20 |
|---|---|---|---|
| Payload | 6kg | 12kg | 20kg |
| Working envelope | |||
| Max. reach | 1420mm | 1667mm | 2305mm |
| Other data and variants | |||
| Controlled Axes | 6 | 6 | 6 |
| Repeatability | +- 0.05mm | +- 0.05mm | +- 0.05mm |
| Weight | 120kg | 177kg | 370g |
| Installation | Floor / Upside-Down / Wall Mount | Floor / Upside-Down / Wall Mount | Floor / Upside-Down / Wall Mount |
