Specification

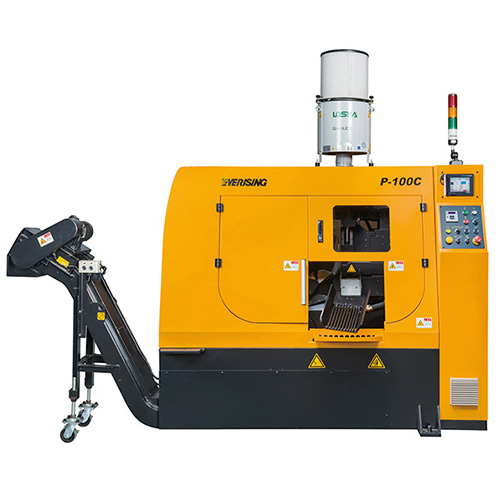

| Model | P-100C | |
|---|---|---|
| Capacity | ● | 15 - 100 mm |
| ■ | 15 - 80 mm | |
 |
15 - 80 mm | |
| Blade Motor | 15 HP | |
| Hydraulic Pump Motor | 3 HP | |
| Blade Speed | 30 - 130 rpm | |
| Saw Blade Size ( T:Kerf t:Thickness ) | Ø 360 x T2.6 x 2.25t mm | |
| Blade Feed | Servo motor and ball screw | |
| Load Table ( W x L ) | 1200 mm x 5200 mm | |
| Bar Feed | Servo motor and ball screw | |
| Automatic Feed Length | Single feed 8 - 600 mm Multiple feed - 3000 mm |
|
| Automatic Chip Conveyor | Scraper type | |
| Cooling | Air compressed oil mist | |
| Machine weight With Table | 3900 kg | |
| Floor Space (mm) | Machine With 5M Load Table | 2900 W x 1960 L 2900 W x 6835 L |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
