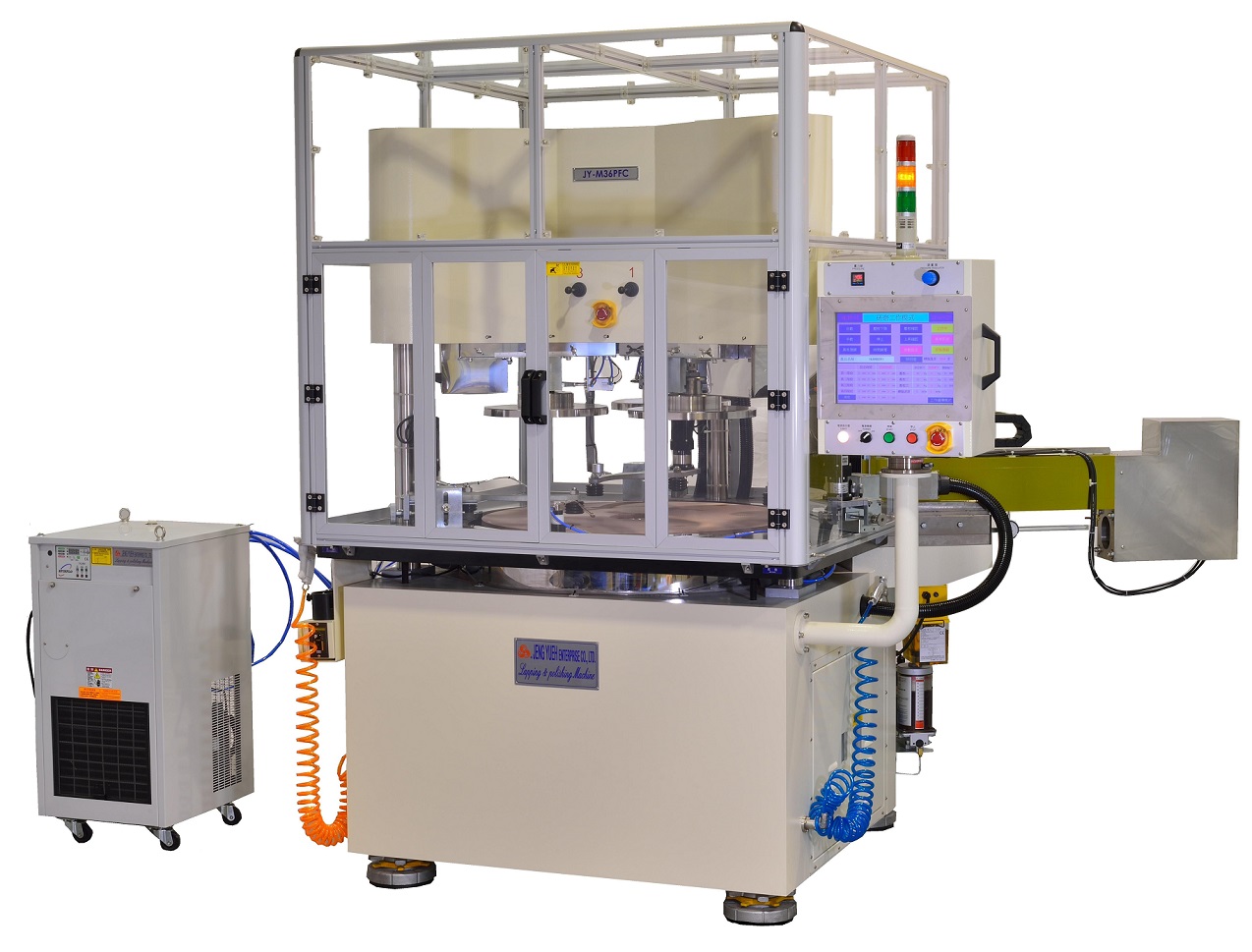

Single-sided surface lapping machine with CNC facing devise
Single-sided surface lapping machine with CNC facing devise
JY-M36PFC

Automatically repair plate institutions by Facing devise

--CNC machining concentric round

--can processing disc lines-spiral

--can rebuilt disc plane degrees

-- Can be set width and depth for ditch of plate

--for plate material: Metal copper, Resin copper, Resin Tin

With water cooling system of plate

For processing size: is less than φ 368mm

For processing products: Quartz substrate, Sapphire substrate, Ceramic substrate

Specification

Plate diameter Ø914mm

Processing capacity: less than ID368mm

Conditioning ring quantity      3PCS

Rotational speed of plate       0-60rpm

Speed of conditioning ring     0-78min

Main motor     11KW

X-axis motor(Facing)       1.3KW

Z-axis motor(Facing)       400W
