Preform Molds

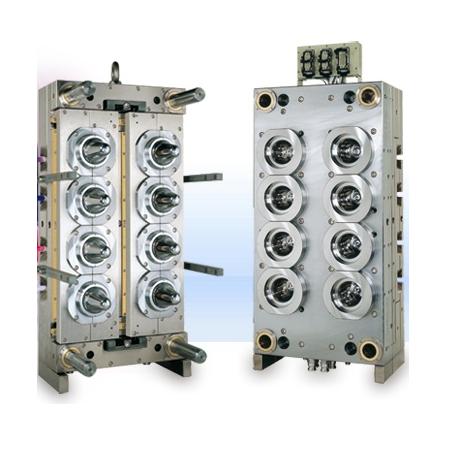

PET Preform Molds
Preform Molds



































































PET Preform Molds
Mold platen steel: PDS-5 (P-5) high grade tool steel HRC 27°-32°.

Cavity, core & neck rings steel: Swedish ASSAB STAVAX - 420, high grade with hard treatment up to HRC 50°-54°.

PC-VG Series Valve Gate Hot Runner System.

Interchangeable parts for every cavity.

Machining tolerance standards 0.005mm-0.003mm.

90% of mold parts interchangeable with injection mold machines.

Guaranteed preform wall thickness concentricity: ±0.075mm (L=100mm).

Optimized preform design ensures dynamic bottle blowing success.

Applications include: Aseptic, cold fill, hot fill, CSD, dry food and snacks jars.
