Permanent magnet clamp／magnet clamp

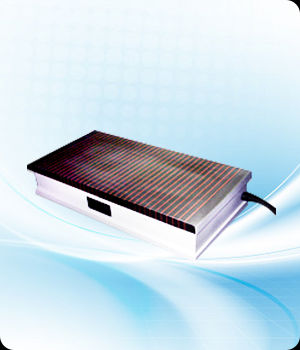

Standare Pole Electromahnetic Chuck
SG.C
APPLICATION
Most suitable for gninding operation, of standard electromahnetic chuck.
Specification
| 形式 Model |
尺寸 Dimension |
吸盤作業面 Chucking Size |
磁極間隔 Pole Pitch |
吸盤基準面 Chuck Mounting Face |
電壓 Voltage |
電流 Current |
重量 Weight |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | P | G | E | F | H | N.W. | ||||
| SG-1530C | 150 x 300 | 150 | 300 | 228 | 22 | 15(3+12) | 144 | 316 | 20 | 70 | Dc90V | 0.15A | 21kg |
| SG-1535C | 150 x 350 | 150 | 350 | 288 | 22 | 15(3+12) | 144 | 366 | 20 | 70 | Dc90V | 0.18A | 25kg |
| SG-1545C | 150 x 450 | 150 | 450 | 378 | 22 | 15(3+12) | 144 | 466 | 20 | 70 | Dc90V | 0.24A | 32kg |
| SG-2040C | 200 x 400 | 200 | 400 | 348 | 22 | 15(3+12) | 194 | 416 | 20 | 70 | Dc90V | 0.47A | 38kg |
| SG-2045C | 200 x 450 | 200 | 450 | 378 | 22 | 15(3+12) | 194 | 466 | 20 | 70 | Dc90V | 0.35A | 43kg |
| SG-2550C | 250 x 500 | 250 | 500 | 438 | 22 | 15(3+12) | 240 | 500 | 20 | 70 | Dc90V | 0.73A | 67kg |
| SG-3060C | 300 x 600 | 300 | 600 | 529 | 22 | 15(3+12) | 290 | 600 | 20 | 70 | Dc90V | 0.97A | 97kg |
| SG-4080C | 400 x 800 | 400 | 800 | 725 | 22 | 15(3+12) | 390 | 800 | 20 | 80 | Dc90V | 1.56A | 182kg |
| SG-40100C | 400 x 1000 | 400 | 1000 | 936 | 22 | 15(3+12) | 390 | 1000 | 20 | 80 | Dc90V | 1.60A | 228kg |
| SG-50100C | 500 x 1000 | 500 | 1000 | 936 | 22 | 15(3+12) | 490 | 1000 | 20 | 80 | Dc90V | 1.72A | 285kg |
| SG-120150C | 1200 x 1500 | 1200 | 1500 | 1438 | 27 | 15(3+12) | 1500 | 20 | 90 | Dc90V | |||
