Electric Winch

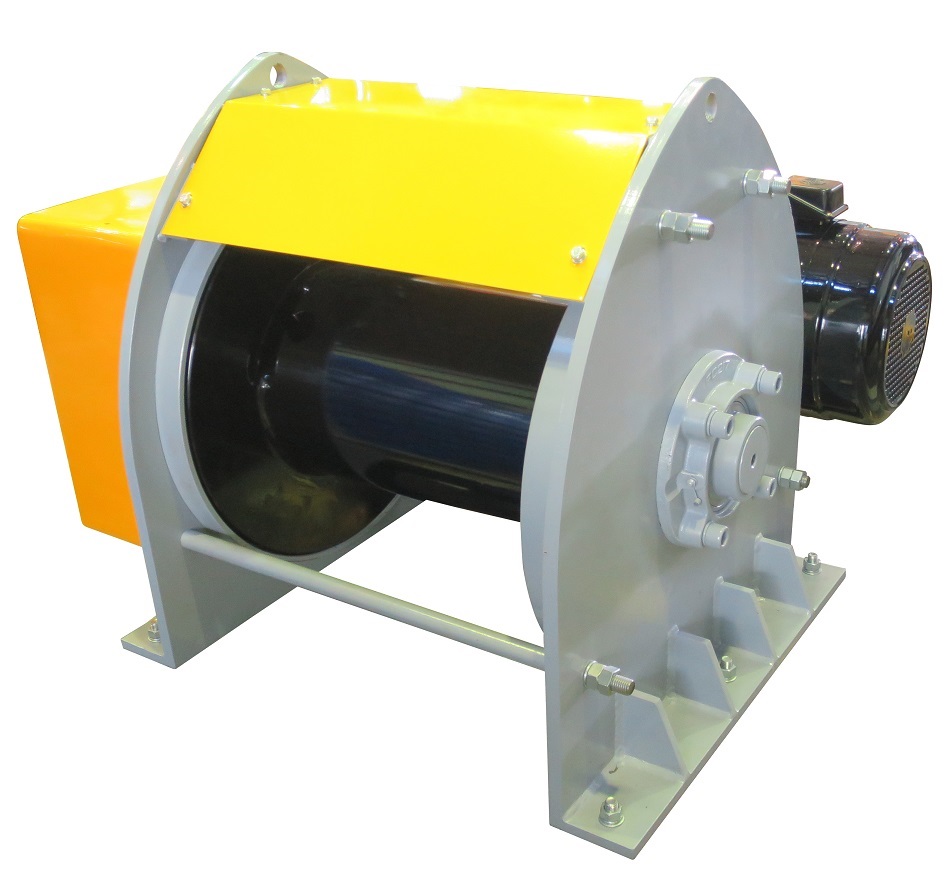

Electric Winch TC7500
電動捲揚機 TC7500

TC7500

TC7500

Product

Features

* Electromagnetic disc brake incorporated in the motor applied failsafe brake even in The event of power failure.

* Inside the winch is the 3 stage helicle gear trains developing for maximum mechanical efficiency

* The 24VAC master control box incorporated with “Up/Down/Emergency Stop/Light” functions as well as over-load protection design.

* The separated remote control with an emergency stop button with a 5 meter cord as option.

* This range of all-purpose electric winch provides the professional solution of all your needs for hoisting, lowering and pulling.

* Comply with EN 14492-1 ( Power Driven Winches), CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC
* Standard accessories: Wire rope w/safety hook and master control box

Specifications

Winch Model

Rope Layer

No.

1

2

3

TC7500a or

TC7500b

Rated lifting cap.by layer kgf

50 Hz

10,065

8,886

7,955

7,500

60 Hz

8,723

7,701

6,894

6,500

TC7500a

Rope speed

m/min

50 Hz

7.4

8.4

9.4

10.4

60 Hz

8.9

10.1

11.3

12.5

TC7500b

50 Hz

5.5

6.3

7.0

7.8

60 Hz

6.6

7.5

8.4

9.3

TC7500a or

TC7500b

Rope length m

43.8

93.4

148.8

200



Maximum Lifting Capacity: 7,500 kgf at wire rope top layer for 50 Hz motor

                                           6,500 kgf at wire rope top layer for 60 Hz motor

Power Source: 3 phase, 380V, 400V, 415V, 440V; 50 Hz or 60 Hz

Rating: (63% of rated load) - 40% ED

Driven Classification: ISO-M5, FEM-2M

Motor: TC7500a…15 kw x 6P brake motor, IP 54, F class insulation

           TC7500b…11 kw x 8P brake motor, IP 54, F class insulation

Gear Train: 3 stages helical gears 150:1

Static Braking Torque: 150% of winch ratings

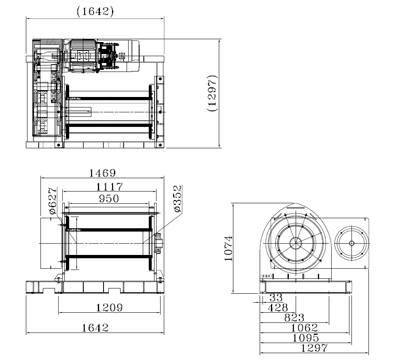

Drum Dimension: 352 (barrel drum dia.) x 627 (flange dia.) x 950 (width) mm

Master Control Box:  IP 54, 24 VAC control box including over-load protection switch, Up/Down/Emergency Stop/Light functions

Wire Rope: 25 mm diameter x 200 meter, galvanized 6 x FI 29 +IWRC 1770 N/mm2 grade with 423 kN breaking strength

Mounting Bolts Pattern: 1209 x 33,428,823,1062 mm each

Body Dimension: 1,642 x 1,297 x 1,074 mm
Winch Weight: 1,510 kg
Gross Weight: 2,160 kg
