CNC 2.5D Machining
CNC 2.5D machining available, multi cavities machining,
CNC - 2.5D CNC,3軸放電加工機



CNC
2.5D machining available, multi cavities machining, circle orbiting, square orbiting XY, XZ, YZ, orbiting plane changeable Employs 32 bits industrial grade computer for maximum stability, fast execution, and great memory capacity.
Employs advanced window display for convenient operation.

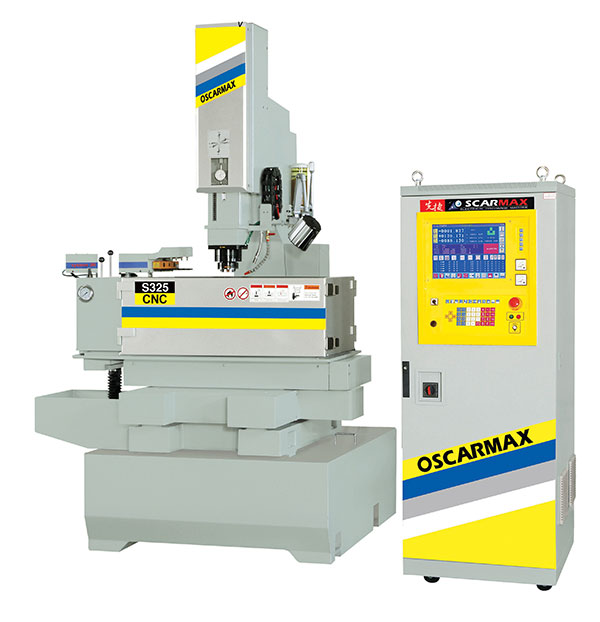

S325 CNC
S430S CNC
S430 CNC
S550 CNC
S500 CNC
S645 CNC
S860 CNC
S1060 CNC
S1270 CNC
S1470 CNC
S1675 CNC
S1880 CNC
S1510 CNC
S2010 CNC
S2210 CNC
S1510-2H CNC
S2210-2H CNC
S3010-2H CNC
GENERATOR:
  • Employs 32 bits industrial grade computer for mximum stability, fast execution, and great memory capacity.
  • Employs advanced window display for convenient operation.
  • Automatic traverse and positioning function for three axes.
  • Maximum 1000 positioning holes for each life.
  • Over 8 Modes orbiting modes.
  • Z-axis features 10 steps machining and auto change the machining parameters.
  • Parameters such as machine rigidity travel speed, arcing sensitivity, flushing height Chinese / English display and inch / Metric can be set as desired.
  • Maximum memory capacity is up to 100 working files. Machining mode (single step or full steps), machining simulation, arcing height, Z-axis compensation, coordinate compensation.
  • 9 sets of home points & 100 sets of machining coodinates.
  • Digital dual voltage (high/low voltage) currents being synchronously discharged to ensure faster metal removal rate, low electrode wear and uniform surface finish.
  • Intelligent arcing auto adjustment functiion: Intelligent arcing sensor & adjust paraments to ensure best performance.
  • New "FUZZY" edition function: just input: (1) Material of electrode & workpiece (2) Machining depth. (3) BiMaximum current & (4) Minimum current, the "FUZZY" will auto set the machining parameters for each step from roughing to final finishing.
FEATURES OF THE MACHINE:
  • High sensitive & fast response servo system.
  • Software hardware and mechanical limits switch provide comprehensive safety guards on the machine.
  • Table surface is heat treated to avoid scratching.
  • Constructed of rugged cast iron, quench treated for constant accuracy.
  • Digital readouts with 0.001mm.
Rigid construction & precision:
  • XY axes dia. 32mm for models: S430/S, S550 & S645, S500.
  • XY axes dia. 40mm for models:A1055, S1470, S1675, S1880, S2010, S2210.
ADOPTING ULTRA WIDE LINEAR GUIDES:
  • XY axes width: 30mm & 2 blocks for models S430/S, S550, S500.
  • XY axes width: 35mm & 2 blocks for models S6445, S1055.
  • XY axes width: 45mm & 2 blocks for models S1470, S1675, S1880, S2010, S2210.


Pre-tension C5 class high accuracy double nuts ballscrews, 3 support & taper type high precision bearings to ensure free backlash & smooth movement.

  A.T.C.:with electrode protection sensor, insufficient air pressure sensor.

Conversational programming for easy learning and operation.
Clear concise and well organized display.
  Humanistic electronic handwewwl (M.P.G.)with remote control box for convenient and fast modle alignment.
Minimum setting unit of movement 0.001 mm: STANDARD.

EZ-SPARK: FASTER! LOWER WEAR!
For harden workpiece sparking circuits, available for all oscarmax series. (Option)



Specification

SPECIFICAIONS:

DIELECTRIC UNIT:

  • All specifications and designs are subject to change without notice.
  • Larger models are avallable as requests.
OPWER SUPPLY UNIT:
POWER SUPPLE UNIT UNIT 30A 60A 90A 120A 180A
Max. machining current A 30 60 90 120 180
Max. power input KVA 3 4.5 8 12 18
Max. removal ratio mm³/min 250 430 700 900 1,500
Min. electrode wear ratio % 0.15 0.15 0.15 0.15 0.15
Best surface roughness um/Ra 0.18 0.18 0.18 0.18 0.18
Outside dimensions
(L x W x H)
mm
(inch)
820X620X1700
(32X24X67)
820X620X1700
(32X24X67)
820X620X1700
(32X24X67)
820X620X1700
(32X24X67)
820X620X1700
(32X24X67)X2
Weight KGS 300 300 350 380 680
STANDARD ACCESSORIES :
  • X, Y, Z axes double nuts ballscrew.
  • Linear guides X, Y, Z-axes.
  • X, Y, Z-axes digital readout in 0.001mm.
  • 14” CRT
  • Auto fire extinguisher.
  • Halogen work lamp.
  • Clamping plate.
  • Levelling pad.
  • Flushing nozzle.
  • Patented dlectrode holder.
  • Paper filter.
  • Drill chuck.
  • Tool box.
  • M.P.G.
OPTIONAL ACCESSORIES:
  • Auto tiil changer.
  • Dielectric cooler.
  • Permanent magnetic table.
  • Paper filter.
  • EZ-spark for harden workoiece.
