Products

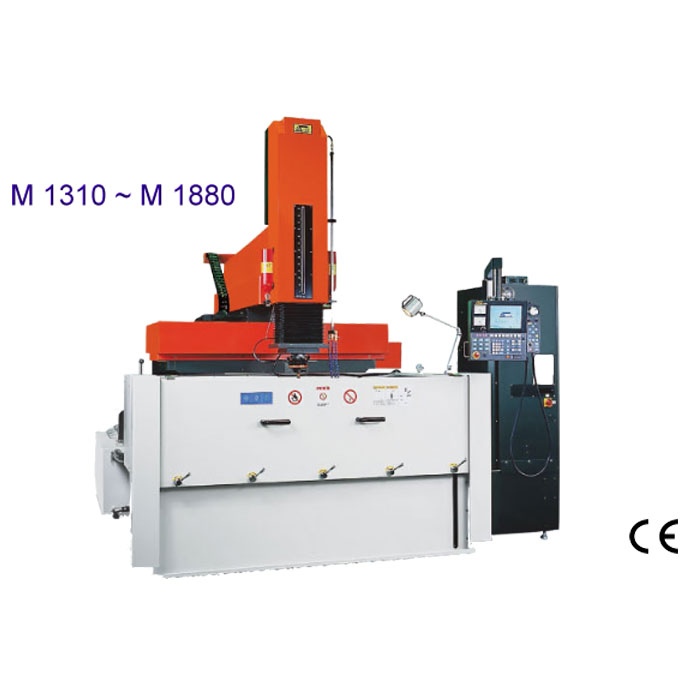

Sliding Single-column EDM
CNC Series : Sliding Single-column EDM (Ram type)
M1675 ~ M1880

The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.

Specification

Specification
M 1675
M 1880
X, Y-Travel
1600 x 750 mm
1800 x 800 mm
Z-Travel
600 mm
600 mm
Table Dimension
1850 x 1000 mm
1850 x 1000 mm
Work Tank Dimension
2320 x 1350 x 700 mm
2420 x 1350 x 700 mm
Max. Table-Quill Distance
450~1050mm
450~1050mm
Max. Electrode Weight
450 kgs
500 kgs
Max. Table Loading
9500 kgs
10500 kgs
Dielectric Tank Capacity
2600 Litre
2800 Litre
Filters
8 pcs
8 pcs
Machine Weight
8600 kgs
9100 kgs
Machine Height
3370 mm
3370 mm
Ground Area M1675 M1880
Nominal Current
60A / 5A, 90A / 5A, 120A / 5A
Input Voltage
220 / 380 / 415 / 440V
Connected Rating
7KVA / 10KVA / 13KVA
Max. Stock Removal Rate
400 / 600 / 800mm³/min
Best Surface Roughness
Ra ≦ 0.1μm
Best Electrode Wear Rate
< 0.2% ( specific equip.< 0.1%)
Standard accessories
Additional Equipment
Precision Electrode Clamps ATC (Auto Tool Change)
Piezoelectric Light C-Axis
Work Fastening Tool Kit "EROWA" Chuck-Swiss
Magnetic Induction Oil Nozzle Base 3R System Chuck-Swedish
Operation Manuals Di-Electric Cooler
M.F.D (Fine Mirror Finish) Electric Oil
X, Y, Z Axis Linear Scales (1μm) Permanent Magnetic Chuck
  Automatic Fire Extinguisher
