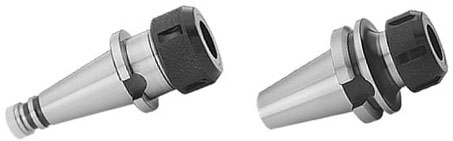

MILLING COLLET CHUCK KIT
#25 OZ,#32 OZ COLLET CHUCK(DIN 6388)
Specification
| TOOL NO. |
TAPER |
DIN6388 |
DRAW BAR |
WEIGHT KGS |
| OZ642530 |
ISO30 |
#25 |
1.M12x1.75P
2.1/2"-12
3.1/2"-13UNC
|
1 |
| OZ642540 |
ISO40 |
1.M16x2.0
2.5/8"-11
|
1.3 |
| OZ642550 |
ISO50 |
1.M24x3.0
2.1"-8
|
3.2 |
| OZ642502 |
MTB2 |
1.M10x1.5
|
1 |
| OZ642503 |
MTB3 |
1.M12x1.75P
2.M10x1.5P
3.1/2"-12
4.1/2"-13UNC
5.3/8"-16
|
1 |
| OZ642504 |
MTB4 |
1.M16x2.0
2.5/8"-11
|
1.2 |
| OZ642505 |
MTB5 |
1.M24x3.0
2.1"-8
|
2 |
| OZ642508 |
R8 |
7/16"-20UNF
|
1.2 |
| OZ642640 |
BT40-OZ25-80L |
M16x2.0
|
1.6 |
| OZ642650 |
BT50-OZ25-100L |
M24x3.0
|
4.3 |
| OZ642740 |
SK40-OZ25-80L |
M16x2.0
|
1.9 |
| OZ642750 |
SK50-OZ25-100L |
M24x3.0
|
4.2 |
| OZ642840 |
CAT40-OZ25-3"L |
5/8"-11
|
1.9 |
| OZ642850 |
CAT50-OZ25-3 1/2"L |
1"-8
|
4 |
|
| TOOL NO. |
TAPER |
DIN6388 |
DRAW BAR |
WEIGHT KGS |
| OZ643230 |
ISO30 |
#32 |
1.M12x1.75
2.1/2"-12
|
2 |
| OZ643240 |
ISO40 |
1.M16x2.0
2.5/8"-11
|
2.2 |
| OZ643250 |
ISO50 |
1.M24x3.0
2.1"-8
|
4.8 |
| OZ643205 |
MTB5 |
1.M24x3.0
2.1"-8
|
3 |
| OZ643340 |
BT40-OZ32-90L |
1.M16x2.0
|
2.3 |
| OZ643350 |
BT50-OZ32-100L |
1.M24x3.0
|
5 |
| OZ643440 |
SK40-OZ32-80L |
M16x2.0
|
2.3 |
| OZ643450 |
SK50-OZ32-100L |
M24x3.0
|
5 |
| OZ643540 |
CAT40-OZ32-3"L |
5/8"-11
|
2.3 |
| OZ643550 |
CAT50-OZ32-3 1/2"L |
1"-8
|
5 |
|
