Safety warning light

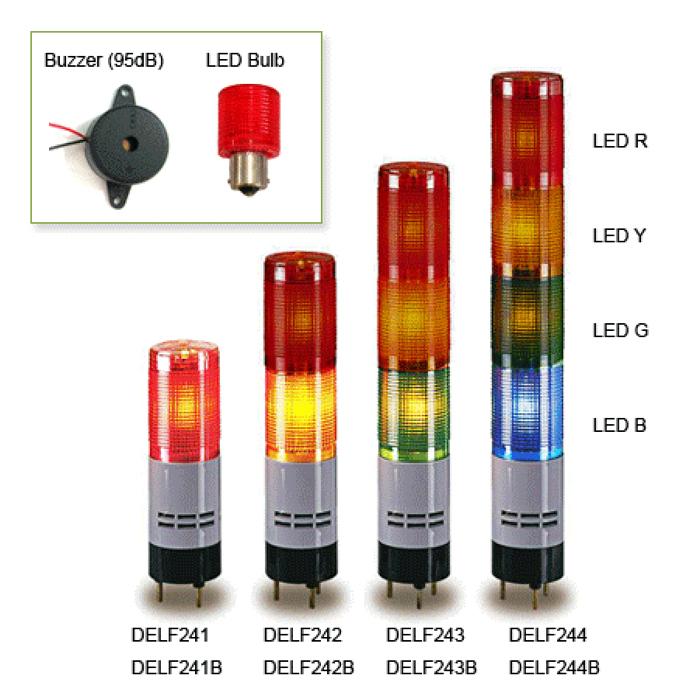

LED TOWER SIGNAL LIGHT
DELF

1. Patent : 171611

2. Type : LED bulbs

3. Voltage : standard 12V DC/ 24V DC(Non-pole) / 120V/230V

4. Available colors : R,Y,G,B (5 layers: R,Y,G,B,W is on requested.)

5. Power : 0.5W

6. Model type: Non-flashing and Flashing

7. The unique prism cut lens enhances visibility from any direction and distance.

8. Enclosure: PC and Engineering plastic with superior resistance to impact and heat.

9. Suitable for displaying the operation status of machine tools, industrial machine, special purpose machine, automatic production line, robot, etc.

10. This series can be used for many kinds of warning area like machine emergency, alarm surveillance and so on.

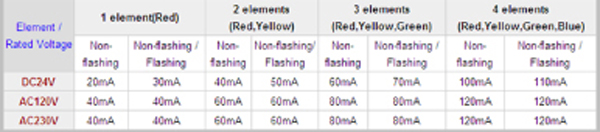

11. LED light current consumption :

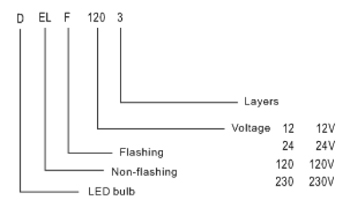

Model Constructional instruction:


EX :  DELF243         LED/Non-flashing and flashing/ 24V/ 3 layers R,Y,G

12. Buzzer (95Db/m), Flashing, Non-flashing version are available.

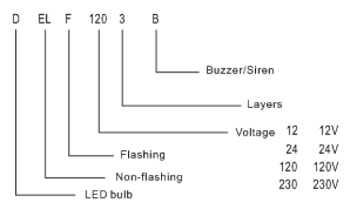

Model Constructional instruction:


EX :  DELF2301B         LED/Non-flashing and flashing/ 230V/ 1 layer R /Buzzer

13. CE/RoHS DOC
