Products

Type of Operation

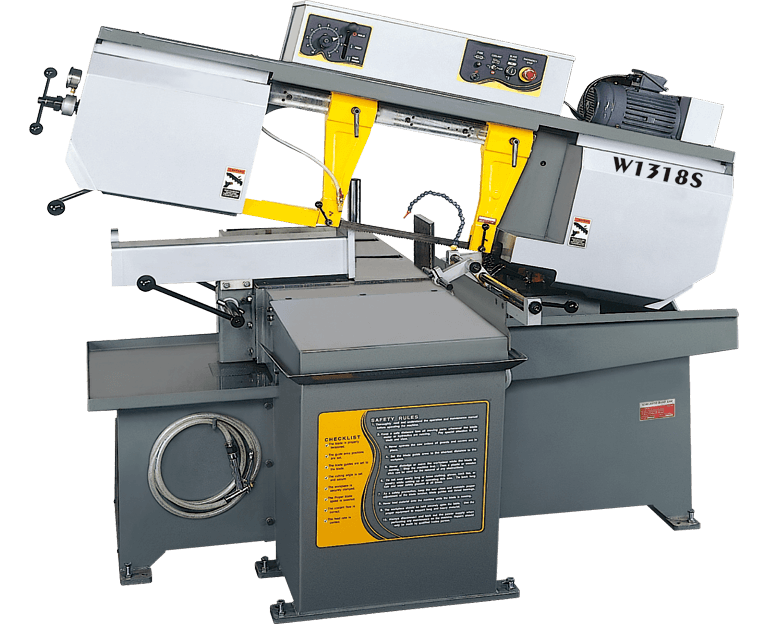

Manual Band Saw
W1318S

H330 W450
Step pulley four speeds
Blade tension by manual
Blade tension gauge
Angle setting (R60˚) by manual
Quick action vise by manual
Bow down-feed control valve
Blade wheel driven chip brush

Specification

Specifications

Capacity 90° ● 330 mm
▅▅ 330 x 450 mm
Capacity 45° ● 280 mm
▋ 330 x 280 mm
Capacity 60° ● 160 mm
▋ 250 x 160 mm
Blade Motor 3 HP (2.2 kw) x 4P
Coolant Pump 1/8 HP (0.1 kw) x 2P Blade Size 27 x 0.9 x 4130 mm
Blade Speed  28 / 41 / 60 / 78 mpm Coolant Tank 30 L
Packing Size 2110 x 940 x 1595 mm
1665 x 850 x 600 mm
N.W./G.W. 850 Kg / 970 Kg
