Auto Downfeed Surface Grinders
Auto Downfeed Surface Grinders
APSG-1020AD

Machine Feature
High performance cast iron adopted with best structure design to ensure rigidity, stability and accuracy.
2A: Hydraulic longitudinal (X) axis; auto cross feed (Z axis); manual down feed (Y axis).
AD: 3A with Y axis auto down feed.
P4 precision angular contact bearings adopted to ensure spindle round out within 2μ.
3A: Hydraulic longitudinal (X) axis; auto cross feed (Z-axis); rapid power down feed (Y axis).

Specification



Description APSG-1020AD
General Capacity
Table size 250x500mm
Max. table travel W x L 300x580mm
Distance from table surface to spindle center 500mm
Longitudinal Movement
Table speed(approx) 1~25M/min
Cross Feed Movement
Continuous feed(approx) 60HZ/1100mm/min
50HZ/900mm/min
Handfeed 1.gra. 0.02mm
Handfeed 1.rev. 4mm
Intermittent cross feed 0.1~10mm
Vertical Down Feed
Handfeed 1.gra. 0.005mm
Handfeed 1.rev. 2mm
Rapid feed(3A.AD) 200mm/min

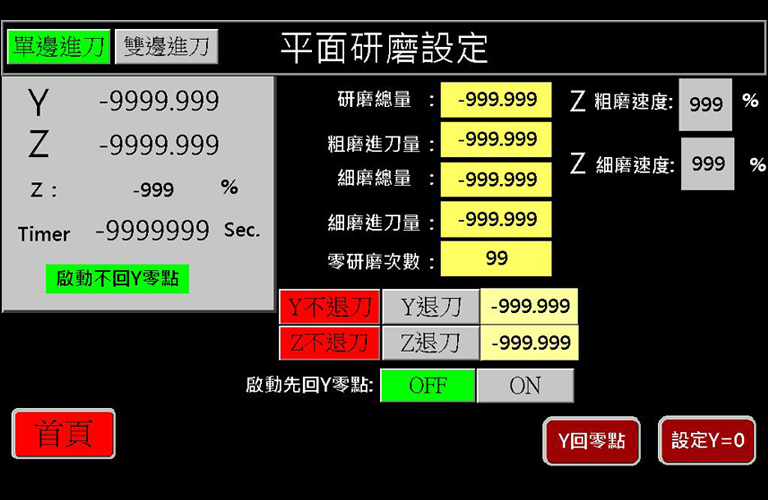

Automatic Down Feed
Feed rate (Coarse/Fine) 0.001mm~0.999mm
Fine feed stock removal 0.001mm~0.099mm
Grinding Wheel
Wheel size (dia x width x bore) 180x13(19)x31.75mm
Wheel speed 50HZ/2850rpm
60HZ/3450rpm
Motors
Spindle motor 3HP
Cross feed motor 1/5HP
Hydraulic motor 1HP
Weight
Net/Packing gross 1500/1750kgs
Packing size
L x W x H 180x160x210cm

Standard Accessories

Grinding Wheel With Flange

Wheel Balancing Arbor

Wheel Dresser With Diamond

Toolboc & Tools

Wheel Balancing Base

Working Lamp

Leveling Screw & Plate

Operation Manual

Optional

Permanent/ Electro Magnetic Chuck

Parallel Dressing Attachments

Demagnetizer

Grinding Wheel Flange

LED Working Lamp

Paper Filter W/Coolant System

Wheel Inverter

Coolant System W/Splash Guard

Coolant System & Dust Unit W/Splash Guard

Dust Suction System

Vertical MPG Microfeed Device

Magnetic Separator Filter

Cooland System With Auto Paper Filter & Magnetic Separator DRO & Linear Scale
