Precision universal cylindrical grinder
Heavy Duty CNC series

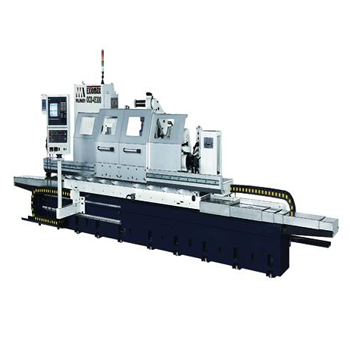

OCD-45(65)150/220/300


  • 1. Main Structure of the CNC cylindrical grinder, when in combination angle control of spindle by C axis, is capable of grinding various special shaped workpiece.

  • 2. Working spindle carried with precision angle decoder, high resolution of angle control reaching up to 0.1 μm.

  • 3. The feed axis is equipped with close loop control optical scale to reach high precision ,

  • 4. Retaining various functions of CNC cylindrical grinder, and applicable to angle and speed control.

  • 5. Fast and easy transferring custom-made grinding porgram, when operated with PALMARY-developed CAD/CAM software.

  • 6. A high-speed algorithm controller executed under PC Based + Windows XP, allowing input of 3rd-party software.

  • 7. An optional sound frequency anti-crushproof system,consistent grinding operations are ensured.

  • Another benefit is toprevent parts colliding caused by erroneous motion when executing program.

  • 8. Un-point dressing device or roller type dressing device is equipped according to functional requirement.

  • 9. USB access, combined with the market available USB high-speed transmission interface, providing excellent data portability.

  • 10. With 1ms single session processing time.


Specification

Model OCD-45(65)150 OCD-45(65)220 OCD-45(65)300
Swing Over Table Ø450 / 650 mm Ø450 / 650 mm Ø450 / 650 mm
Distance Between Centers 1500 mm 2200 mm 3000 mm
Max. Grinding Diameter Ø420 / 620 mm Ø420 / 620 mm Ø420 / 620 mm
Max. Workpiece Load 800 kg by between centers / 2000 kgs by heavy steady rest 800 kg by between centers / 2000 kgs by heavy steady rest 800 kg by between centers / 2000 kgs by heavy steady rest
Wheel
OD x Width x ID Ø510x 50 ~ 125mm x Ø152.4 mm Ø510x 50 ~ 125mm x Ø152.4 mm Ø510x 50 ~ 125mm x Ø152.4 mm
Speed 33 m/sec 33 m/sec 33 m/sec
Wheel head - X Axis
Max. Movable Distance 350 mm 350 mm 350 mm
Feedrate 0.001 - 2000 mm/min 0.001 - 2000 mm/min 0.001 - 2000 mm/min
Rapid Feedrate 4000 mm/min 4000 mm/min 4000 mm/min
Wheel head -Z Axis
Max. Movable Distance 1970 mm 2750 mm 3620 mm
Feedrate 0.001 - 2000 mm/min 0.001 - 2000 mm/min 0.001 - 2000 mm/min
Rapid Feedrate 4000 mm/min 4000 mm/min 4000 mm/min
Workhead
Center MT. No.5 MT. No.5 MT. No.5
Speed (Variable Speed) 0 - 250 RPM 0 - 250 RPM 0 - 250 RPM
Center MT. No.6 MT. No.6 MT. No.6
Tailstock
Moveable Mode Of Centers Manual For standard / Hydraulic for optional Manual For standard / Hydraulic for optional Manual For standard / Hydraulic for optional
Motor
Max. Distance Of Centers 60 mm 60 mm 60 mm
Wheel Spindle 11kw (5HP) 11kw (5HP) 11kw (5HP)
Workhead 2.9kw / 5.5kw 2.9kw / 5.5kw 2.9kw / 5.5kw
Workhead - X Axis 2.8kw (AC Servo Motor) 2.8kw (AC Servo Motor) 2.8kw (AC Servo Motor)
Workhead - Z Axis 4.4kw (AC Servo Motor) 4.4kw (AC Servo Motor) 4.4kw (AC Servo Motor)
Center Height of Machine
From ground 1000 mm 1000 mm 1000 mm
Machine Weight 12000 kg 14000 kg 16000 kg
