Stainless Steel Mixer

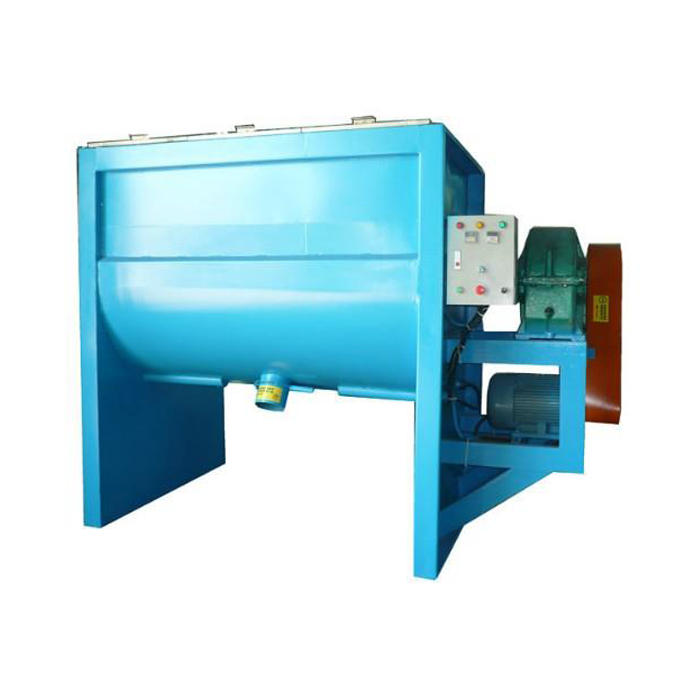

BD Horizontal Heating and Stirring Mixer Series

1)Suitable for lareg quantity of plastic pellets powder new material, sub-material mixing,mixing purposes(single-layer without heating).
2)Suitaboe for stirring ,draing(doble heating of PVC, TPR,TPE,PP PEAND OTHER PLASTIC PELLETS.
3)Double Layer padded maximun temp, up to 300C.
4)Can choose inner board A3 or inner wall SUS304.
5)using imported temperature control from famous factory(Japan, Taiwan)
6)Using imported reducer or gear box of famous factory to decelerate ,safe, stable and reliable,
7)8 turns per minuet(can make to order as per customer's requirements)
8)Screw feeder can be added to faciliate the personnel to operate.
9)Special and large modles are available upon the customer's actual requirement.

Specification

型号Model 马力(Hp)Power 电热(Kw)Heating 搅拌容量(L)Capacity 桶容量(L)Capacity 机械尺寸(mm)L*W*H Dimension  重量(kg)Weingt
BD-300W 3 3-5 150 300 1280*500*1150 220
BD-400W 3 5-8 200 416 1340*500*1200 300
BD-1000W 5 8-10 400 832 2200*1000*1700 600
BD-1200W 7.5 15-18 600 1200 2600*1200*2050 750
BD-1500W 7.5 20-22 800 1555 2800*1500*2500 1200
BD-2000W 10 22-25 1000 1990 2800*2000*3200 1700
BD-2500W 10 25-28 1200 2345 2800*2400*3800 1900
BD-3000W 15 28-30 1500 3000 3000*3300*4800 2400
BD-4000W 15 30-36 2000 3575 3300*3600*5200 2600
BD-4500W 20 35-40 2500 4400 3600*3600*5700 2900
BD-6000W 20 48-50 3000 5990 4300*4800*7500 3900
