conventional Lathe

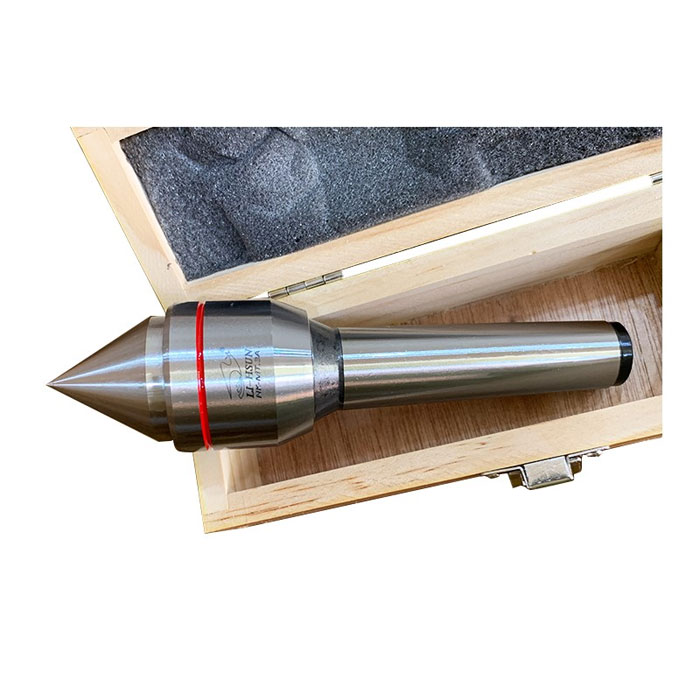

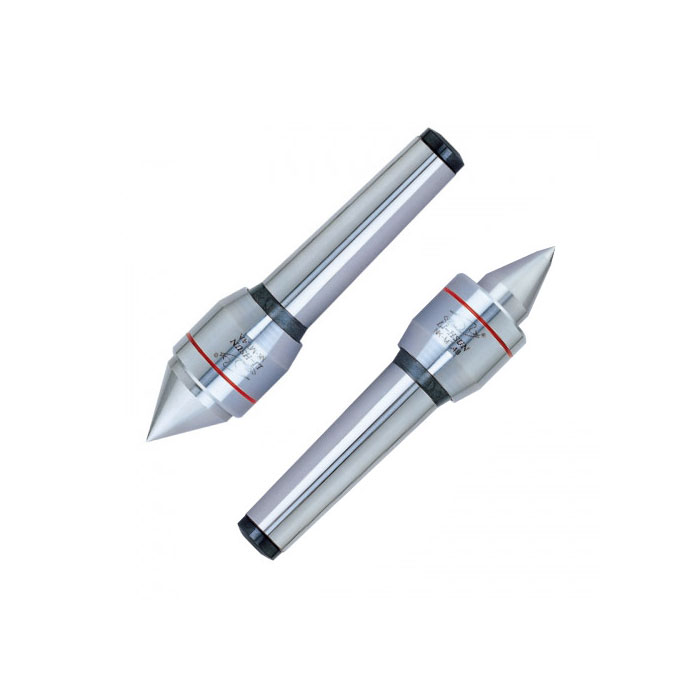

ROLLING CENTER-NK A／B TYPE
NK-MT.2A
1. Center shaft and main body are made of bearing alloy steel and hardened to(HRC60°±1°)
2. Center is assembled with thrust bearing, needle bearing and ball bearing.
3. Applicable to medium and high speed laths with heavy loads.
4. The tailstock pressure of lathe adjusts to five to eight kilograms (for reference)

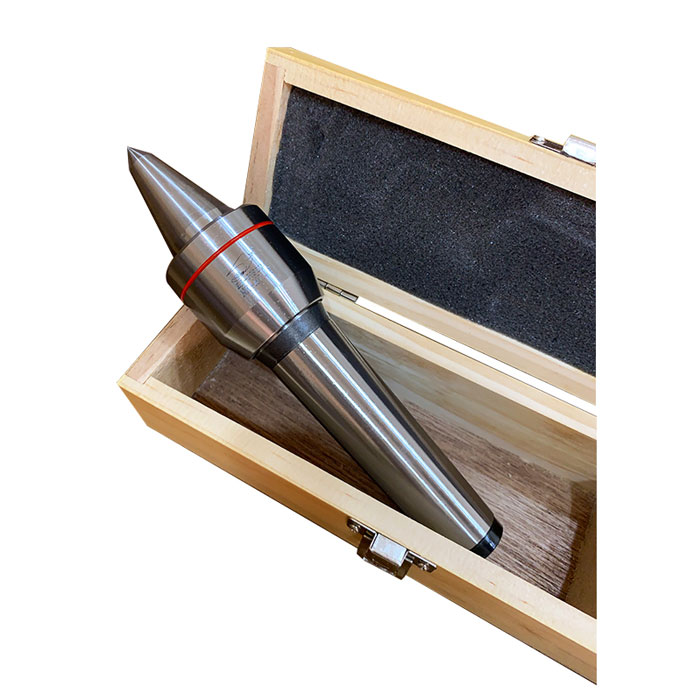

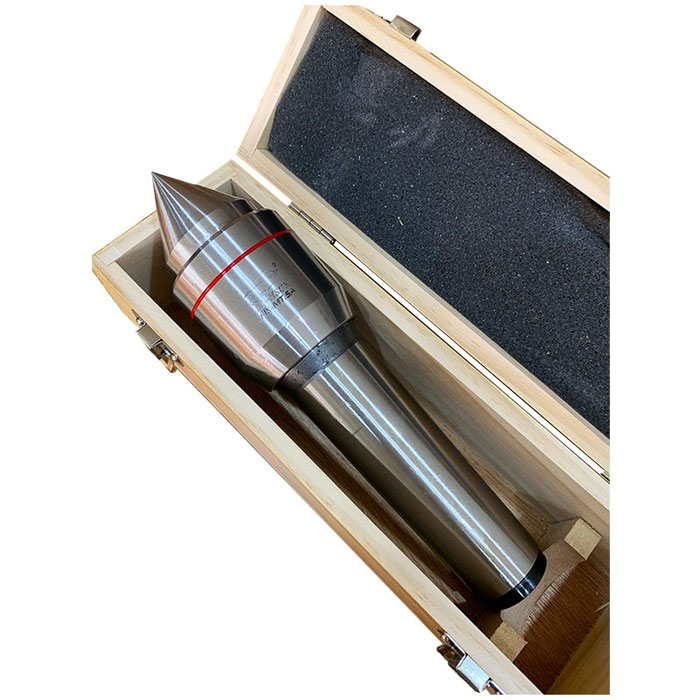

※ NK-B TYPE: Long nose live centers are suitable for small workpieces.

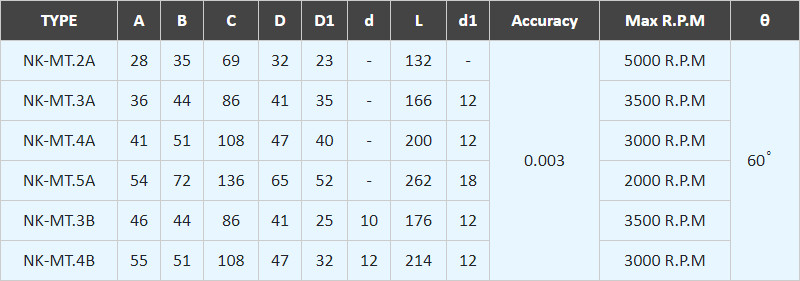

Specification
(1).jpg)
