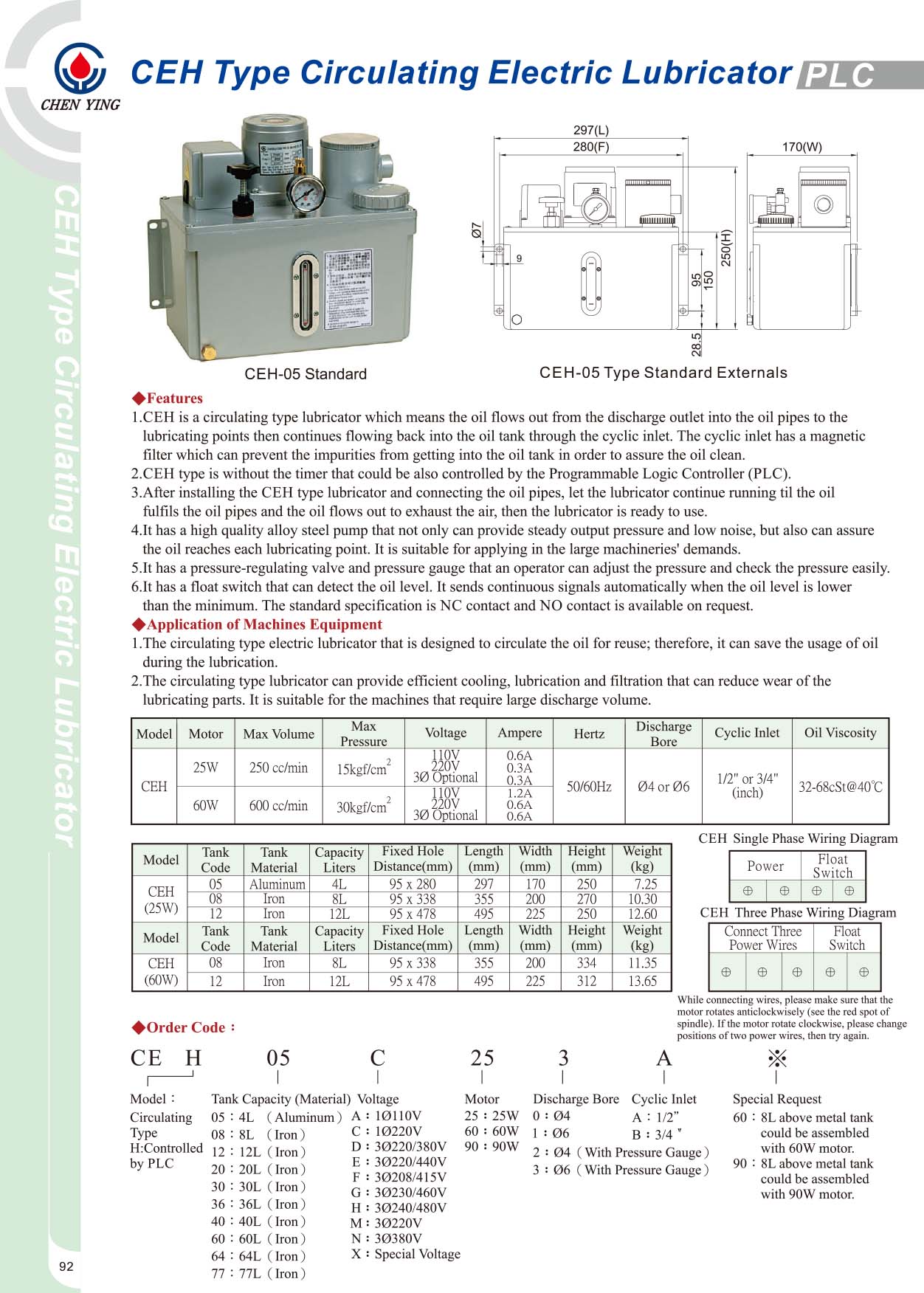

◆Features:

1.CEH is a circulating type lubricator which means the oil flows out from the discharge outlet into the oil pipes to the lubricating points then continues flowing back into the oil tank through the cyclic inlet. The cyclic inlet has a magnetic filter which can prevent the impurities from getting into the oil tank in order to assure the oil clean.

2.CEH type is without the timer that could be also controlled by the Programmable Logic Controller (PLC).

3.After installing the CEH type lubricator and connecting the oil pipes, let the lubricator continue running til the oil fulfils the oil pipes and the oil flows out to exhaust the air, then the lubricator is ready to use.

4.It has a high quality alloy steel pump that not only can provide steady output pressure and low noise, but also can assure the oil reaches each lubricating point. It is suitable for applying in the large machineries' demands.

5.It has a pressure-regulating valve and pressure gauge that an operator can adjust the pressure and check the pressure easily.

6.It has a float switch that can detect the oil level. It sends continuous signals automatically when the oil level is lower than the minimum. The standard specification is NC contact and NO contact is available on request.

◆Application of Machines Equipment:

1.The circulating type electric lubricator that is designed to circulate the oil for reuse; therefore, it can save the usage of oil during the lubrication.

2.The circulating type lubricator can provide efficient cooling, lubrication and filtration that can reduce wear of the lubricating parts. It is suitable for the machines that require large discharge volume.
