High Speed Drilling Machine

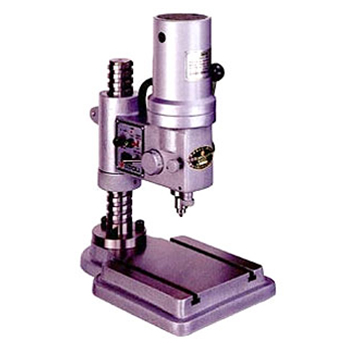

High Speed Precision Bench Drill
BDS-300

Application :

●  Glasses, watch, electron, gold, copper, steel, iron; all kinds of precise metal products can be drilled perfectily.



Characteristics :

●  High precise process in all parts; applicable to accurate drill operation.

●  Best efficient in fine adjustment, with a easy handle knob.

●  Easy to install the drill parts for having a "T" style tank upon the bench.

●  Simple operation with an active lever can adjust contact angle.



Qualities :

Drill capacity (maximum)



Steel & iron

0.2 ~ 3mm

Brass & aluminum products

0.2 ~ 4mm

Swing

200mm

Number of revolutions of main shaft

2000~12000rpm

Capacity of drilling of main shaft

28mm

Operation surface upon bench

180 x180mm

Largest distance between drill chuck and bench

140mm

Motor

110V 3A 50/60Hz

Height

508mm

Weight

24kg

Specification

Steel & iron

Brass & aluminum products

Swing

Number of revolutions of main shaft

Capacity of drilling of main shaft

Motor

Height

Weight

0.2~3mm

0.2~4mm

200mm

2000~12000rpm

28mm

110V 3A50/60HZ

508mm

24kg
