FULL AUTO, 2／3 AXIS SERVO-Surface grinding machine

FULL AUTO, 2／3 AXIS SERVO-Surface grinding machine-APS-618 / 818 / 1224 / 1228 / 1632 / 1636 / 1640 P/S

Surface Grinding machine - Saddle series

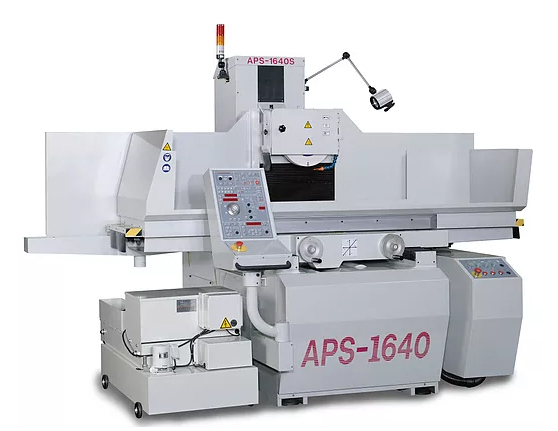

FULL AUTO, 2／3 AXIS SERVO-Surface grinding machine

APS-618 / 818 / 1224 / 1228 / 1632 / 1636 / 1640 P/S

Surface grinding machine working table (L x W) /
APS-618 P/S: 460mm x 150mm
APS-818 P/S: 460mm x 200mm
APS-1224/1228 P/S: 600/700mm x 300mm
APS-1632/1636/1640 P/S: 800/900/1000mm x 400mm

Main feature /
■ Accuracy
Table surface guaranty(Testing grinding piece*6, thickness difference) : 2μ(618/818), 3μ(12xx/16xx series), 5μ(1640)
Downfeed(minimum unit) : 1μ
■ Spindle & motor
Vertical driven by AC servo motor.
2HP V3 grade low virbration spindle motor.(618/818)
5HP V3 grade low virbration spindle motor.(12xx series)
7.5HP V3 grade low virbration spindle motor.(16xx series)
Direct drive spindle, ABEC Class 7 (P4) bearings, 0.003m/m TIR.
4 angular contact ball bearings at front, 2 angular contact ball bearings at rear side of spindle.
■ Cross and Longitudinal
Cross and longitudinal are driven by servo motor.(S)
Cross driven by servo motor and longitudinal driven by hydraulic.(P)
Longitudinal by advanced table hydraulic design, feed range from 1m/min to 25m/min, it provides easy operation and vibration-free reversing motion and controlled by the proximity sensor built-in design for safety.(P)
■ Base & slide ways
Linear guide way with extra large block for vertical axis.
Cross double V and longitudinal V& flat, and TURCITE B coated with hand scraped, 2 axes are box ways.
One-piece casting base and slide way.
All main castings are made of "Meehanite GC275" and have been annealed stress for long lasting and accuracy.

Specification

Technical data /

	DESCRIPTION ＼ MODEL	UNIT	APS-618P	APS-618S	APS-818P	APS-818S	APS-1224P	APS-1224S	APS-1228P	APS-1228S	APS-1632P	APS-1632S	APS-1636P	APS-1636S	APS-1640P	APS-1640S
CAPACITY	Maximum distance from table top to spindle center line	mm	95-910		95-910		700		700		700		700		700
	Table surface (L x W)	mm	460x150		460x200		600x300		700x300		800x400		900x400		1000x400
	Maximum longitudinal travel	mm	530	510	530	510	700	600	800	760	900	870	1000	970	1100	1070
	Maximum cross travel	mm	170		220		360		360		460		460		460
	T-slot (No. x W)	No.x mm	1x14		1x14		3x17		3x17		3x17		3x17		3x17
FEED	Longitudinal movement of table (X axis)
	Hydraulic feed	m/min	0.1-25		0.1-25		1-25		1-25		1-25		1-25		1-25
	Continuous traverse feed	m/min		0-25		0-25		0-25		0-25		0-25		0-25		0-25
	Handwheel per revolution	mm	69		69		65		65		65		65		65
	Cross movement of saddle (Z axis)
	Intermittent feed	mm	0.15-10	0-12	0.15-10	0-12	1-15		1-15		1-15		1-15		1-15
	Continuous traverse feed	mm/min	1200		1200		1800		1800		1800		1800		1800
	MPG Handwheel per revolution	mm	0.1-5		0.1-5		0.1-5		0.1-5		0.1-5		0.1-5		0.1-5
	MPG Handwheel per graduation	mm	0.001-0.05		0.001-0.05		0.001-0.05		0.001-0.05		0.001-0.05		0.001-0.05		0.001-0.05
	Vertical movement of wheel head (Y axis)
	MPG Handwheel per revolution	mm	0.1-1		0.1-1		0.1-1		0.1-1		0.1-1		0.1-1		0.1-1
	MPG Handwheel per graduation	mm	0.001-0.01		0.001-0.01		0.001-0.01		0.001-0.01		0.001-0.01		0.001-0.01		0.001-0.01
	Rapid vertical feed.	mm/min	800		800		1200		1200		1200		1200		1200
SPINDLE & WHEEL	Spindle motor	KW/P	1.5/2 (OPT 3.7/2)		1.5/2 (OPT 3.7/2)		3.7/4 (OPT 15/4)		3.7/4 (OPT 15/4)		5.5/4 (OPT 22/4)		5.5/4 (OPT 22/4)		5.5/4 (OPT 22/4)
	Spindle speed (50/60HZ)	rpm	2860 / 3460		2860 / 3460		1455/ 1755		1455/ 1755		1455/ 1755		1455/ 1755		1455/ 1755
	Grinding wheel OD x T x B	mm	Φ205x13xΦ31.75		Φ205x19xΦ31.75		Φ355/305x50xΦ127		Φ355/305x50xΦ127		Φ355/305x50xΦ127		Φ355/305x50xΦ127		Φ355/305x50xΦ127
MOTOR	Hydraulic motor	KW/P	2.2/4	-	2.2/4	-	3.7/4	-	3.7/4	-	3.7/4	-	3.7/4	-	3.7/4	-
	Cross feed (AC servo)	KW	400		400		400		400		750		750		750
	Vertical feed (AC servo)	KW	400		400		400		400		400		400		400
	Longitudinal feed (AC servo)	W	-	750	-	750	-	1000	-	1000	-	1500	-	1500	-	1500
DIMENSION & WEIGHT	Floor space (L x W x H)	mm	2110x2400x 1752		2110x2400x 1752		3240x2500x 2092		3240x2500x 2092		3300x2780x 2092		3350x2780x 2092		3400x2780x 2092
	Packing dimensions (L x W x H)	mm	1880x1820x 2020		1880x1820x 2020		2560x2150x 2170		2660x2150x 2170		3150x2300x 2170		3200x2300x 2170		3250x2300x 2170
	Machine weight (Approx.)	kg	1600		1650		3200		3200		4000		4000		4200
