Generic Stamping Press
C- frame single crank mechanical press-OCP Series

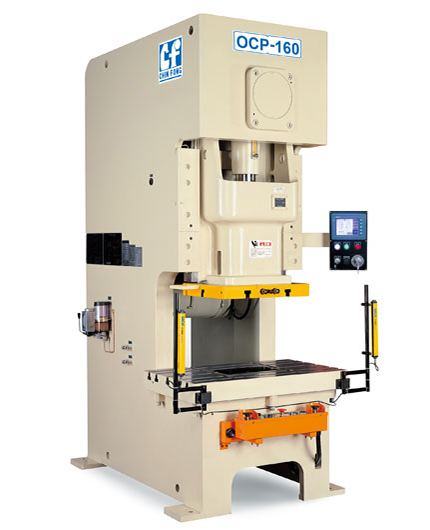

OCP-160
It can be widely used in production process like drawing, bending, marking, flattening, and trimming. This machine can be operated under safety one stroke or continuous mode.
Specification
| Product | OCP-25 | OCP-35 | OCP-45 | OCP-60 | OCP-80 | OCP-160 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | H | L | -- | S | H | L | -- | S | H | L | -- | S | H | L | -- | S | H | L | -- | S | H | L | XL | |
| Capacity-ton | 25 | 35 | 45 | 60 | 80 | 160 | ||||||||||||||||||
| Rated Tonnage Point-mm | 3.2 | 1.6 | 3.2 | -- | 3.2 | 1.6 | 3.2 | -- | 3.2 | 2.3 | 3.2 | -- | 4 | 2.3 | 4 | -- | 5 | 3.2 | 5 | -- | 6 | 4 | 6 | 6 |
| Stroke Length-mm | 70 | 40 | 100 | -- | 80 | 45 | 110 | -- | 80 | 50 | 120 | -- | 90 | 55 | 140 | -- | 100 | 60 | 160 | -- | 130 | 80 | 200 | 250 |
| Strokes Per Minute-Fixed Speed--S.P.M. | - | - | 95 | -- | - | - | 90 | -- | - | - | 80 | -- | - | - | 70 | -- | - | - | 60 | -- | - | - | 45 | 45 |
| Strokes Per Minute-Variable Speed--S.P.M. | 75-140 | 95-180 | 55-100 | -- | 70-135 | 90-180 | 50-95 | -- | 65-130 | 85-175 | 50-95 | -- | 60-120 | 80-165 | 40-85 | -- | 55-110 | 75-150 | 40-75 | -- | 40-85 | 55-115 | 25-50 | 20-45 |
| Die Height (S.D.A.U.)-mm | 245 | 245 | 230 | -- | 250 | 250 | 235 | -- | 250 | 250 | 270 | -- | 270 | 270 | 300 | -- | 300 | 300 | 330 | -- | 350 | 35 | 450 | 450 |
| Bolster Area (L.R. x F.B.)-mm | 720x320 | 780x340 | 850x360 | 850x360 | 850x440 | -- | 900x400 | 900x400 | 900x520 | -- | 1000x460 | 1000x460 | 1000x600 | -- | 1250x600 | 1250x600 | 1250x760 | 1250x760 | ||||||
| Slide Area (L.R. x F.B.)-mm | 350x300 | 380x320 | 430x350 | 500x400 | 560x460 | 700x580 | ||||||||||||||||||
| Product | OCP-200 | OCP-260 | ||||||
|---|---|---|---|---|---|---|---|---|
| S | H | L | XL | S | H | L | XL | |
| Capacity-ton | 200 | 260 | ||||||
| Rated Tonnage Point-mm | 6 | 4 | 6 | 6 | 6.5 | 4 | 6.5 | 6.5 |
| Stroke Length-mm | 150 | 95 | 200 | 250 | 180 | 100 | 250 | 300 |
| Strokes Per Minute-Fixed Speed--S.P.M. | - | - | 45 | 45 | - | - | 30 | 30 |
| Strokes Per Minute-Variable Speed--S.P.M. | 35-70 | 45-95 | 20-45 | 20-40 | 30-60 | 40-75 | 20-40 | 20-35 |
| Die Height (S.D.A.U.)-mm | 410 | 410 | 450 | 450 | 460 | 460 | 500 | 540 |
| Bolster Area (L.R. x F.B.)-mm | 1400x680 | 1400x680 | 1400x850 | 1500x820 | 1500x700 | 1500x700 | 1500x900 | 1750x900 |
| Slide Area (L.R. x F.B.)-mm | 850x650 | 920x700 | ||||||
- Super rigid press frame.
- High driving torque wet type clutch & brake.
- Box type Six-point precision gib.
- Low deflection.
- Quick die change systems.
