Pneumatic Super Hi-pressure Vise
ND-4"G, 5"G

● High-Force Cylinders hardly malfunction
● Fixed Height so several vices can be used together
1. The vise can hold 2 workpieces of different sizes. Allows an extra tolerance of up to 3mm in workpieces.
2. Special High-Force Cylinders are designed to enhance coamping force of 0-4000kg and can be adjusted depends on the material of work-piece.
3. Vise body is made of Ductile lron above FCD 60 grade for high precision and durability. Slide ways are HARDENED to HRC 50° to further increase druabikity and maintain positioning height over long use.
4. Pressure Adjusting Knob: for quick operations.
5. High-Force Cylinders hardly makfunction.
6. Special safety device to ensure the vise holds clamping force 20 minutes if the air supply is cut.
7. Safety range is 4mm.

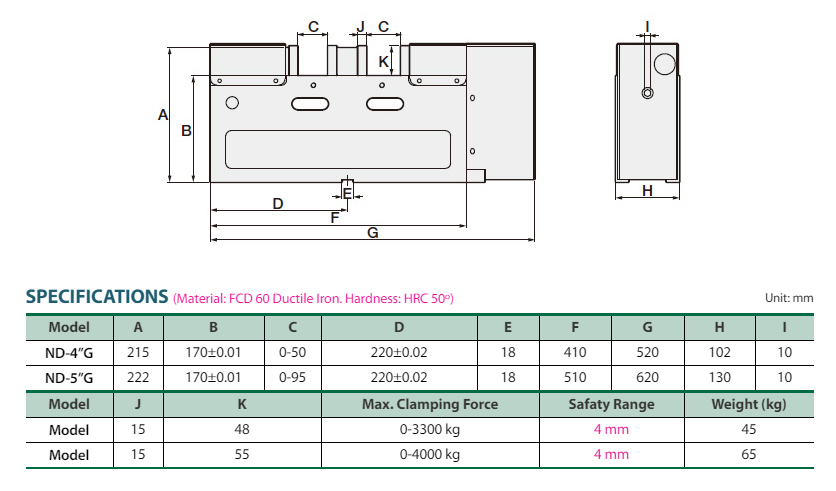

Specification
