Precision Brush series
Union – Anti-Static/Conductive Brushes

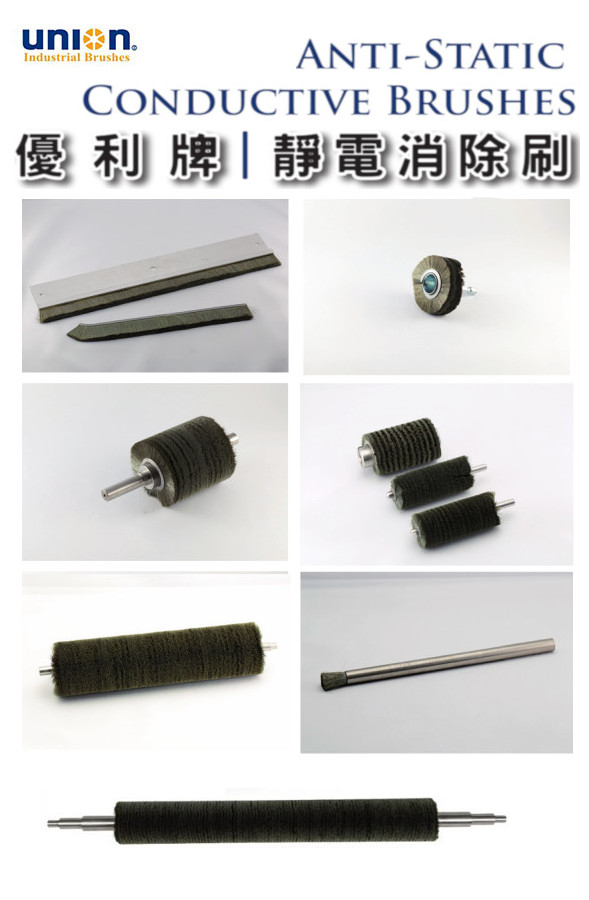

Union – Anti Static Brushes Ordinary chemical fibers and plastic products are always having problems of static electricity, and most of ways to rid of static are metal ground connection. However, partly of chemical fiber is nonconductor, and the metal wire is easily scraped the products. As a result, we push out the product – Union Anti Static Brushes. UNION Anti Static Brush is made of 66 Nylon base interspersed with electric conduction materials, not plating electric conduction on the fiber surface brush. Union Anti Static Brush has good heat-resistance, chemical resistant and can bring high electric conductivity. Materials Properties: 1.Good electric conduction, impedance value is depend on wire diameter from 104 – 109ΩCm & 10-1 – 10-2ΩCm 2.Softened Point: 180℃ Extremity: 215℃ Continuous enduring temp.: 100℃ 3.Chemical resistant, acid and alkali resistant the same as nylon. Materials Diameter: 1.Common Wires – Resistance 104 – 109ΩCm Diameter-range : 0.15mm、0.25mm、0.40mm、0.50mm 2.Super fine wire – Resistance 10-1 – 10-2ΩCm Diameter-range : 0.035mm、0.045mm Application & Usage: 1.Can rid of static, in addition to cleaning the work piece. 2.Good wear resistance and life-lasting. 3.Good flexible, soft wire can connect with work piece completely without scraping. 4.The brush need to connect with the ground, in order to bring static function. 5.Special sizes, specifications and designs are available upon request.
