CIRCULAR SAWING MACHINE/MANUAL TYPE/PNEUMATIC TYPE/ SEMI AUT
CIRCULAR SAWING MACHINE/MANUAL TYPE/PNEUMATIC TYPE/ SEMI AUTOMATIC TYPE
C-325, 1A, 2A

Function:
a. Two-way tongs, without bur when sawing, without powder and dust, with high accuracy.
b. Available sawing angles, left 90 degree to 0 degree; right 90 degree to 45 degree.
c. The front setting water box design of the cooling system is convenient and easy to clean up.
d. Iron chippings are treated together, convenient and clean.

Available Range:
It is an appropriate machine model for thick, middle and thin hollow tubes, and solid tubes. This model is driven by two-set gears, with great torque force, suitable for heavy-duty cutting, available for the furniture industry, sports equipment, sheet metal factories and machine factories.

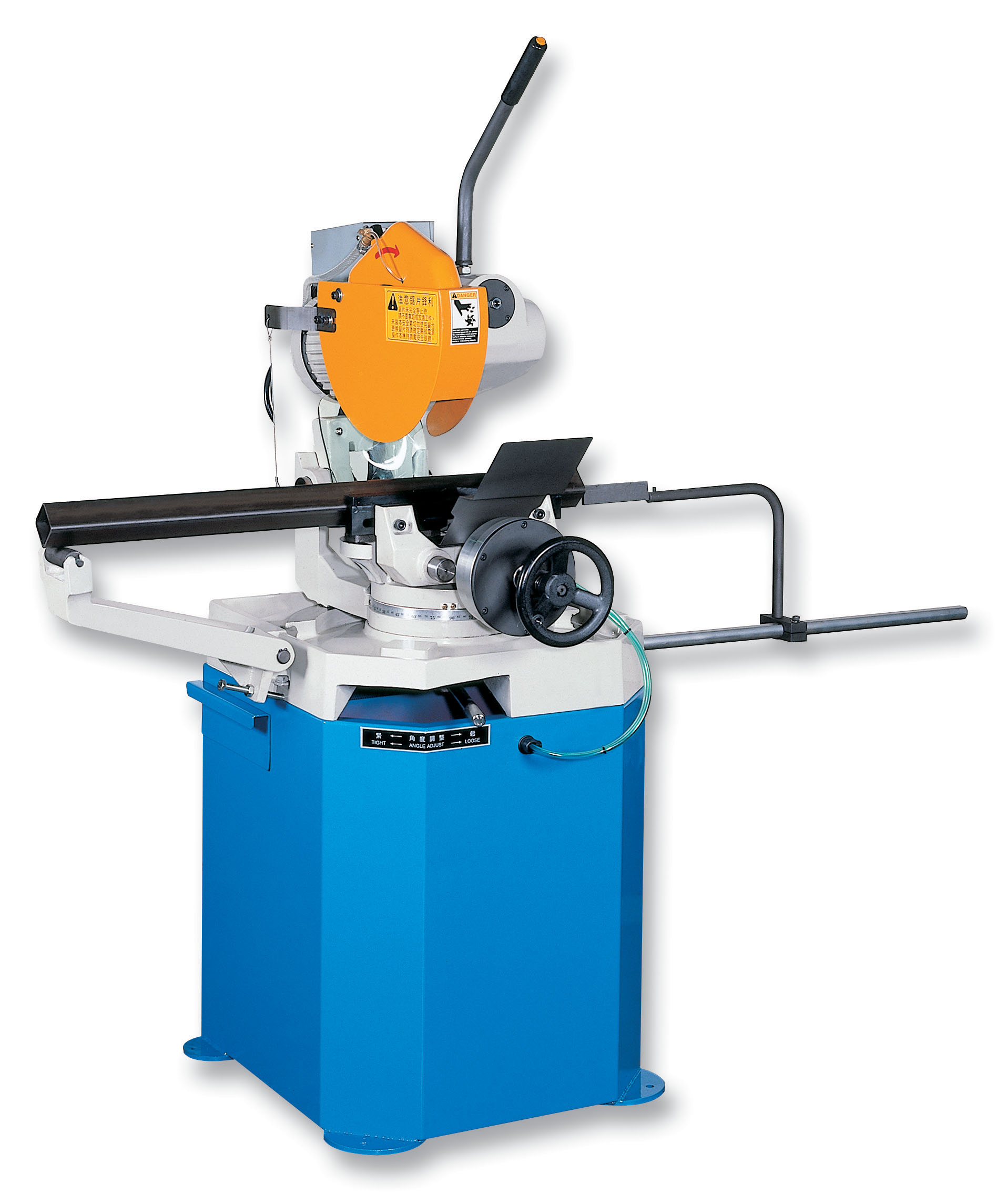

C-325 Features of Hand Operated Tongs and Saw Feeding
Quick measurement of the size, hand operated tongs, hand operated saw feeding and withdrawing, you can control the saw feeding at any time and give the appropriate pressure in accordance with the size of a tube when doing the action of saw feeding, the saw blade can be used for a long time.

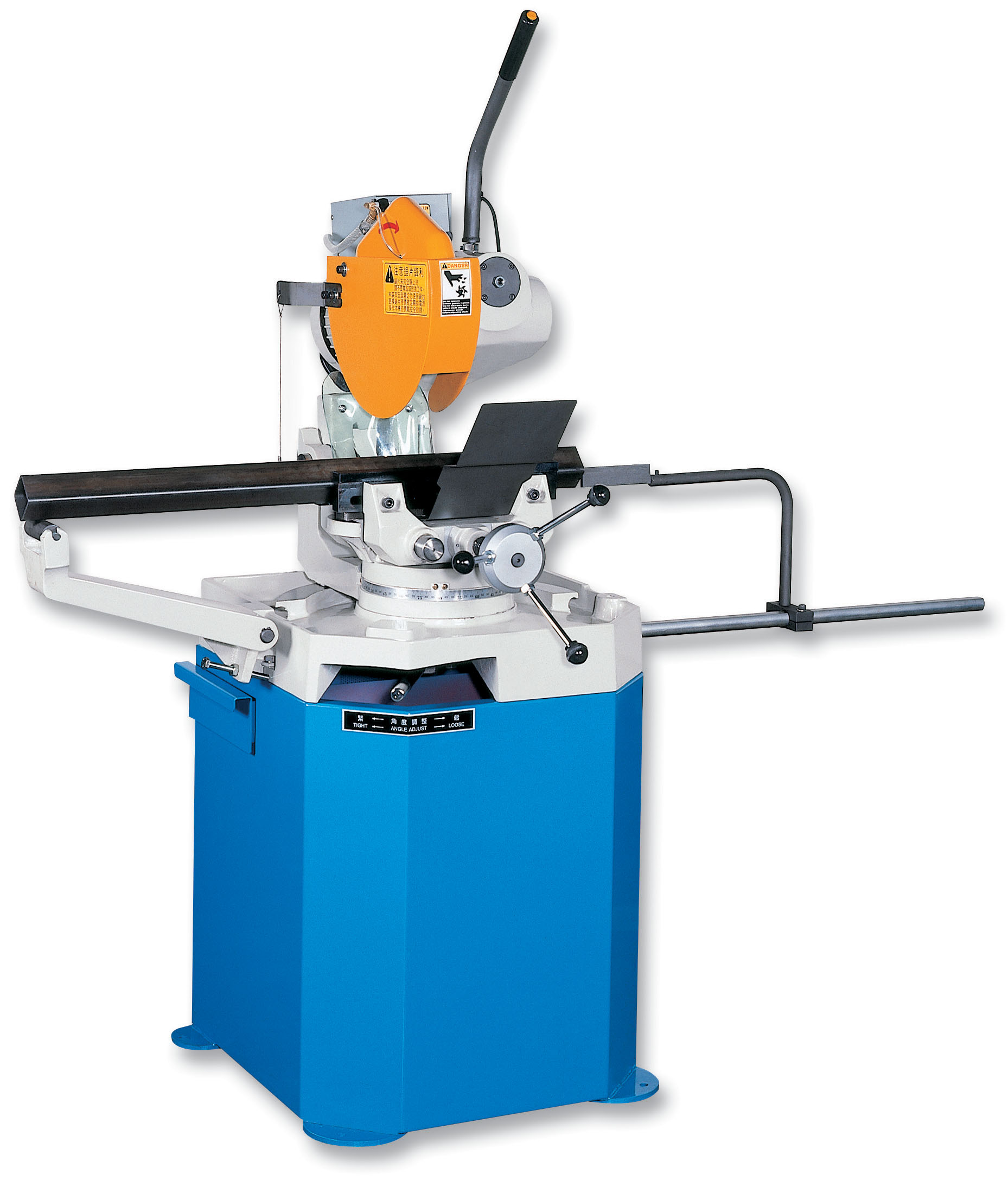

C-325-1A Features of C-325, the automatic clamping function is another feature. When finishing measuring a tube's length, you can press down the switch, and the tube will be clamped tight immediately, which is able to avoid the danger of saw feeding without being clamped tightly.

C-325-2A Features of Automatic Tongs Automatic Saw Feeding and Withdrawing
The model is most appropriate for huge amount. When finishing adjusting the saw blade and a tube's length, you can press down the pedal switch and it will execute the functions of clamping and saw feeding, which will save the production time.

Standard Accessories
A. HSS SAW BLADE 300mm*1 PC
B. POSITION RULER*1 PC
C. CUTTING OIL*1 BOTTLE
D. TOOLS*1 SET
E. CLAMP*1 SET

Specification

Model C-325 C-325-1A C-325-2A
Head Rotating Angle 90° / 45° 90° / 45° 90° / 45°
Sawing Capacity Area: mm-Solid Bar 55 / 45 55 / 45 55 / 45
Sawing Capacity Area: mm-Round Tube 105 / 100 105 / 100 105 / 100
Sawing Capacity Area: mm-Angle Steel 90 x 90 / 90 x 90 90 x 90 / 90 x 90 90 x 90 / 90 x 90
Sawing Capacity Area: mm-Square Tube 90 x 90 / 90 x 90 90 x 90 / 90 x 90 90 x 90 / 90 x 90
Sawing Capacity Area: mm-Trough-shaped Steel 90 x 90 / 90 x 90 90 x 90 / 90 x 90 90 x 90 / 90 x 90
Sawing Capacity Area: mm-Rectangular Steel 125 x 90 / 110 x 50 125 x 90 / 110x 50 125 x 90 / 110 x 50
Cutting Motor A:3HP / 2HP - 2/4P
B:2HP / 1.5HP - 4/8P
A:3HP / 2HP - 2/4P
B:2HP / 1.5HP - 4/8P
A:3HP / 2HP - 2/4P
B:2HP / 1.5HP - 4/8P
Cutting Speed A: 100/50 rpm
B: 50/25 rpm
A: 100/50 rpm
B: 50/25 rpm
A: 100/50 rpm
B: 50/25 rpm
Cooling Pump Power 1/8HP 1/8HP 1/8HP
Required Air Pressure 4 - 6 kgs/cm² 4 - 6 kgs/cm² 4 - 6 kgs/cm²
Used Circular Saw Blade HSS SAW BLADE 250-325mm HSS SAW BLADE 250-325mm HSS SAW BLADE 250-325mm
Feeding Length none none none
Dimensions(mm) L1000 x W650 x H1420 L1000 x W650 x H1420 L1000 x W850 x H1350
Weight 240 kgs 250 kgs 300 kgs
