Specification

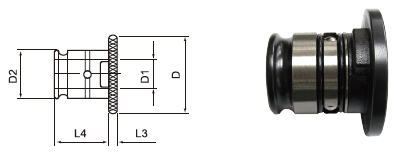

Collets Adapter
Model | Suitable Adapters Size |
For Adapters Size |
D | D1 | D2 | L3 | L4 | Weight (kg) |
---|---|---|---|---|---|---|---|---|
TC820 (#2) / TC312 (#1) | 2 | 1 | 48 | 19 | 31 | 5 | 35 | 0.17 |
TC1433 (#3) / TC820 (#2) | 3 | 2 | 70 | 31 | 48 | 6 | 55.5 | 0.6 |

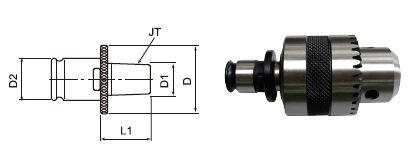

Drill Chuck Collets
Model | For Drill Chuck |
Capacity (mm) |
D | D1 | D2 | L1 | Weight (kg) |
---|---|---|---|---|---|---|---|
TC312 (#1) / JT2 | 10H | 0 - 10 | 30 | 13.94 | 19 | 31 | 0.6 |
TC312 (#1) / JT6 | 13H | 0 - 12 | 30 | 17.17 | 19 | 34 | 0.6 |
TC820 (#2) / JT6 | 13H | 0 - 12 | 48 | 17.17 | 31 | 37 | 0.3 |

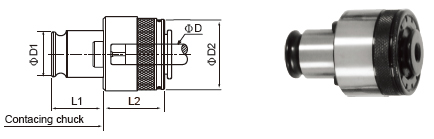

Tc Quick Change Tap Collets
(With Overload Clutch)
Model | Tapping Capacity |
ΦD1 | ΦD2 | L1 | L2 |
---|---|---|---|---|---|
TC312 (#1) | M3 ~ M14 | 19.0 | 32.0 | 21.5 | 25.0 |
TC820 (#2) | M8 ~ M24 | 31.0 | 50.0 | 35.0 | 34.0 |
TC1433 (#3) | M14 ~ M36 | 48.0 | 72.0 | 55.5 | 45.0 |
