Products

Circular EDM
Round hole EDM

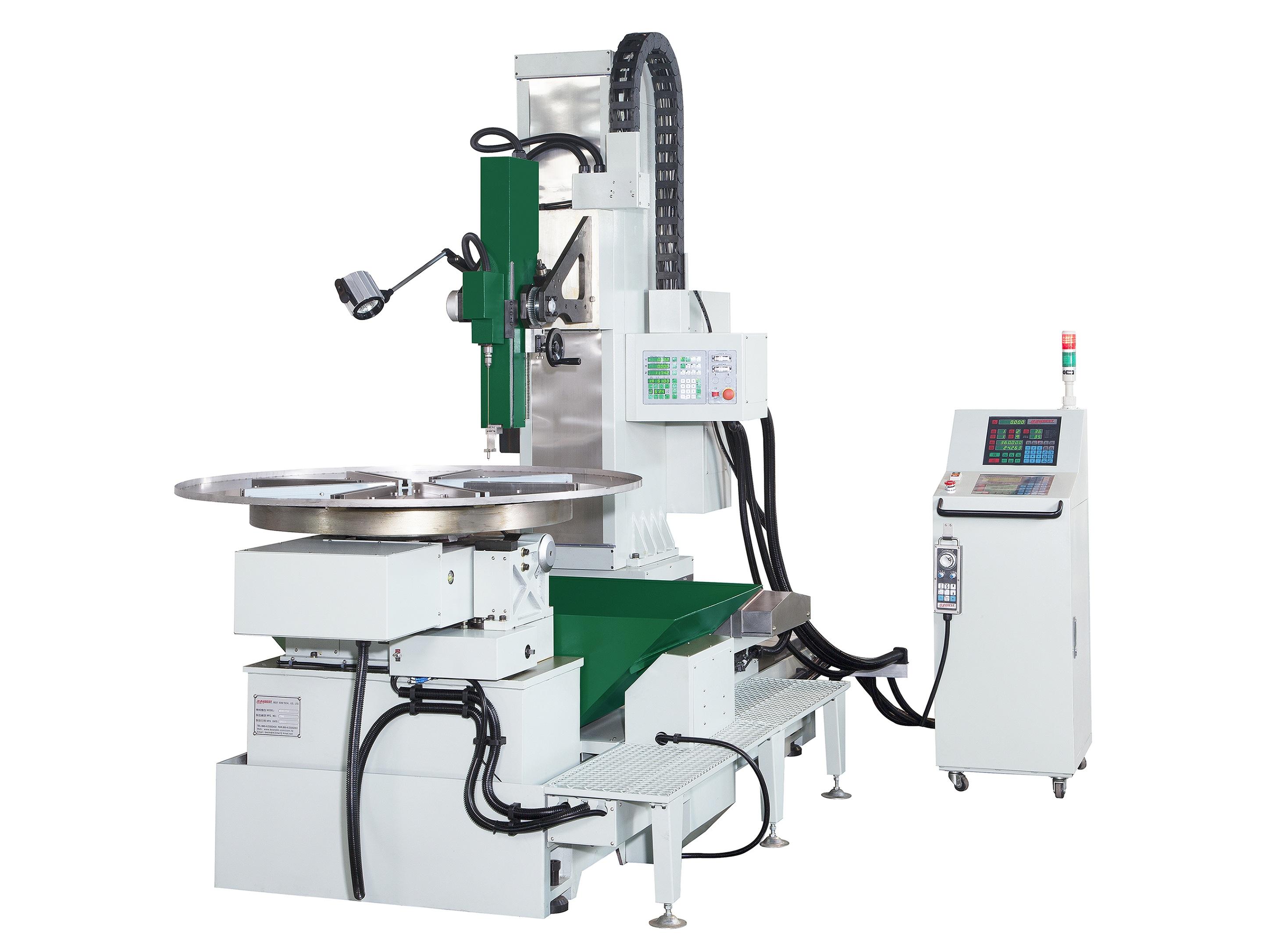

DH-770

1. It is suitable for fine machining of superhard steel and any conductive material, and various irregular shapes.

2. The diameter of the drill hole can be from 0.2 to 3.0mm, and both yellow and red copper are available.

3. Use pure water as working fluid without pollution.

4. The Z1 stroke matches the height of the die.

5.C- axis controlled by micro computer, positional accuracy 1/1000 degree.

6. The inclination angle of the C axis can be accurately read out by the A-axis.

7. The inclination angle of the main shaft can be accurately read by the B-axis.

8.C-axis indexing plate stainless steel turntable table.

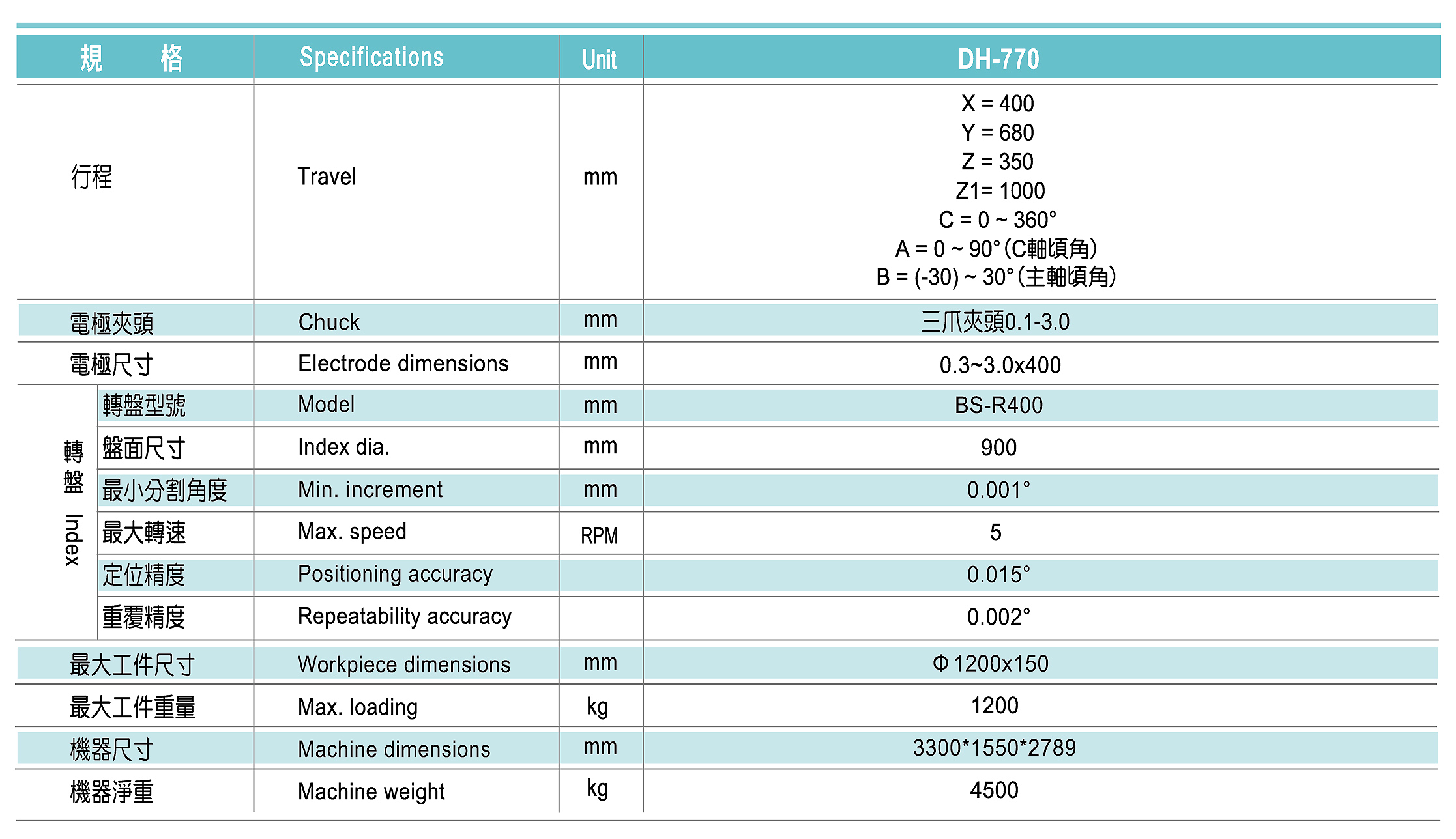

Specification
