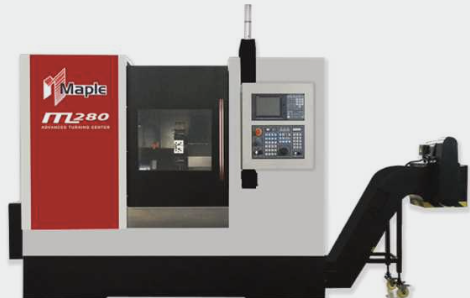

CNC Turning Center
CNC TURNING CENTER
T-4M
Travel
Max. Swing Over bed: 400 mm
X/Z : 350 X 210 mm
Specification
| SPEC/MODEL |
|
T-4M |
| CAPACITY |
|
|
| Max.Swing over bed |
mm |
400 |
| Max.Over cross side |
mm |
180 |
| Max.turning Dia. |
mm |
150 |
| Max.turning length |
mm |
180 |
| Draw tube bore |
mm |
51 |
| Distance between center |
mm |
NA |
| Spindle |
|
|
| Spindle drive motor |
HP |
10/15 (Opt) |
| Spindle speed range |
rpm |
4200 |
| SpIndle nose |
|
A2-6 |
| Spindle bore thru dia. |
mm |
61 |
| Chuck size of 3 jaw dia. |
inch |
CP60 |
| Axis travel |
|
|
| X-axis travel |
mm |
350 |
| Z-axis travel |
mm |
210 |
| X-axis rapid federate |
m/min |
20 |
| Z-axis rapid federate |
m/min |
20 |
| Turret |
|
|
| Tool station |
|
10 |
| Index time next station |
sec |
0.23 |
| Height of square tool |
mm |
20 |
| Dia.of boring bar holder |
mm |
20 |
| Tailstock |
|
|
| Travel of tailstock |
mm |
NA |
| Dia.of tailstock hole |
mm |
NA |
| Travel of tailstock shaft |
mm |
NA |
| Taper of tailstock |
|
NA |
| Other |
|
|
| Coolant pump |
HP |
1/4 |
| Coolant tank capacity |
L |
150 |
| Height of machine |
mm |
1700 |
| Floor space |
mm |
3200 x 1520 |
| Net weight |
kg |
3300 |
|
|
| |
