Precision Lathe
Heavy Duty Lathe
FHK-1120/1220/1320/1420/1520/1620
FEATURES :
◆ SPINDLE BORE: 152mm(6”),230mm(9”),305mm(12”),380mm(15”)
◆ SADDLE: Anti-friction processed surface with regular oil injection, lubricated and friction endurable.
◆ PROCESSING: Base, spindle, saddle, dovetail slot surface of cross slide, top slide and tailstock quill are high frequency treated, precision ground for extending service life.
◆ TAILSTOCK:Two stage feeding device, swing arm movement to have smooth and labor saving operation.

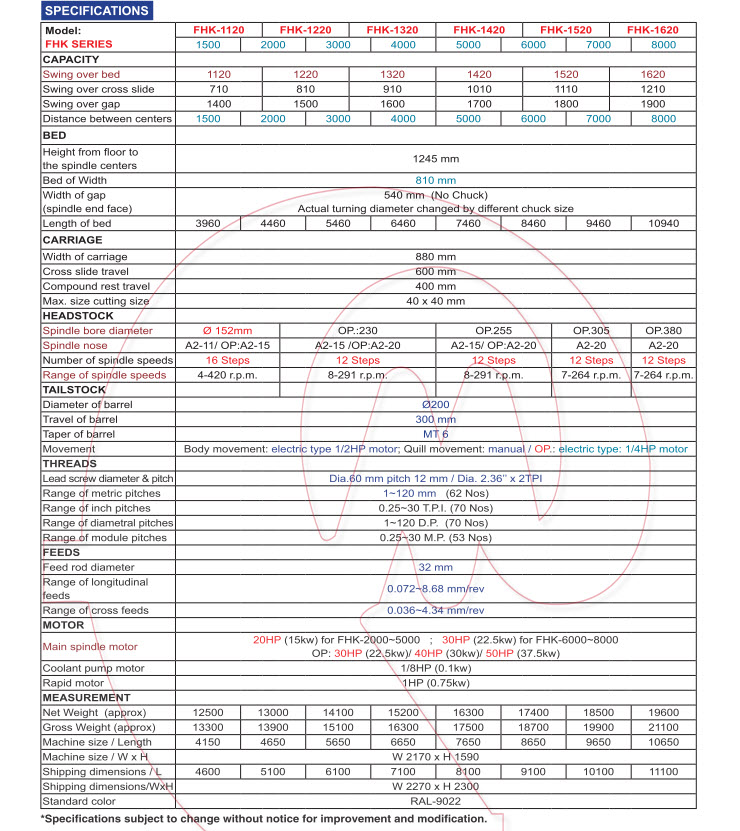

Specification
