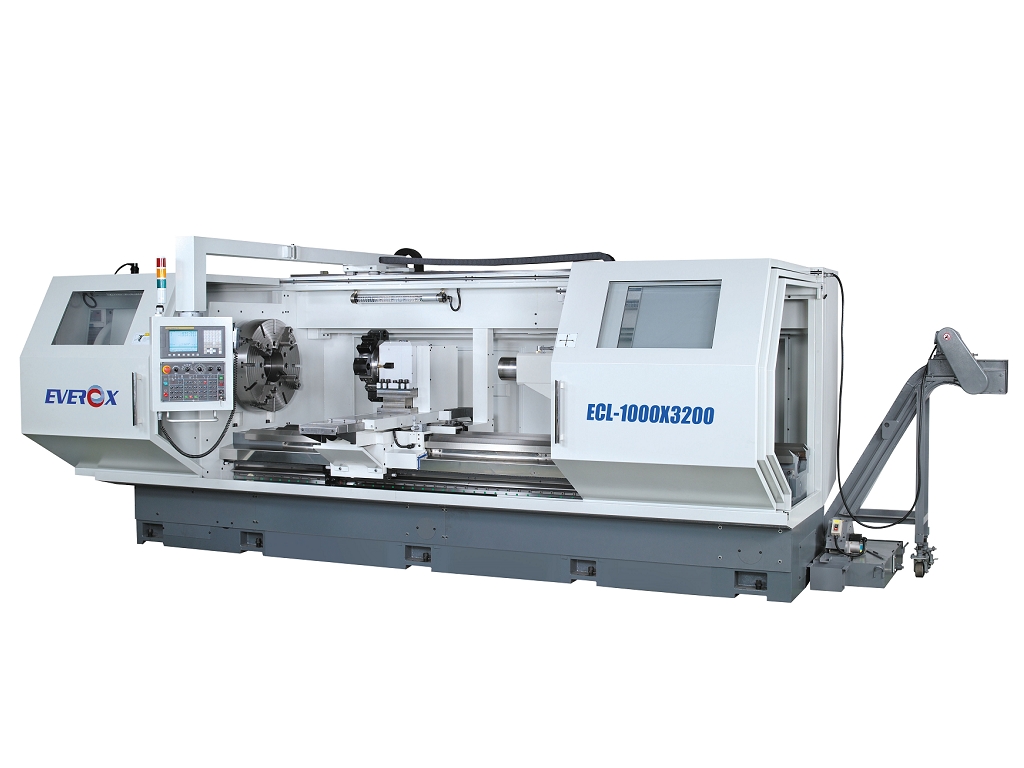

ECL-800-1000
Product Description
FEATURES:
1. The spindle headstock: Equipped 3-step gear change (hyd. System) Spindle bore: φ130mm, φ160mm, φ180mm, φ255mm, φ305mm.
2. Dovetail type guide way design for X axis, it can be maximized the swing over cross-slide diameter.
3. Manual tailstock, quill dia. φ165mm, MT6 for center taper and the manual tailstock lubrication system are all standard.
Specification
■ Standard Accessories | ■ Optional Accessories | ||
1 | Headstock auto. hyd. speed shifting | 1 | 3-jaw scroll chuck |
2 | Four-way hyd. turret | 2 | 4-jaw independent chuck |
3 | Coolant device | 3 | 3-jaw hyd. chuck |
4 | Lubricating system | 4 | Rear spindle interface with chuck |
5 | Work lamp | 5 | H6 or V8 hyd. turret or V12 hyd. turret |
6 | Rear splash guard | 6 | Live turret with C axis |
7 | Tools & Tool box | 7 | Double screw drive for Z axis |
8 | Boring tool holder (not include draw bar) | ||
9 | Roller support | ||
10 | Bearing type steady rest | ||
11 | Follow rest | ||
12 | Chain type chip conveyor | ||
13 | Outside power transformer | ||
14 | CE/CSA approval specification |
