Products

Oil Mist Collector

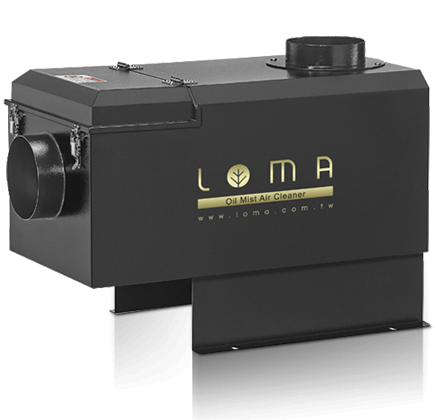

LOMA-N Oil Mist Collector
LOMA-N

In a simulated experiment where the oil mist was generated and recycled, the maximum amount of oil that can be recycled for reuse is 1200cc per hour.

Features
In a simulated experiment where the oil mist was generated and recycled, the maximum amount of oil that can be recycled for reuse is 1200cc per hour.
Exclusive oil-mist separation design and further filtering of collected oil unnecessary.
Turbine aluminum alloy fan wheels are known for being light and low-noise. Super high suction and high performance.
First four stages can be cleaned repetitively and contains no consumable components.
The Stage-1 filter used a woven stainless steel screen capable of filtering metal dust and can be easily cleaned, extending usage life. The Stage-2, Stage-3 and Stage-4 filters are made of resin fiber and are capable of filtering water mist and oil mist.
Patent number M467835/M436140/D144057/D161095

Specification

Specification

Model Unit LOMA-10N LOMA-15N LOMA-20N LOMA-30N
Motor KW 0.18 0.37 0.56 0.75
Load Current A 2.3 / 1.4 2.8 / 1.7 3.2 / 1.9 4.4 / 2.5
Voltage V/HZ 3ø 220V / 380V / 60Hz / 50Hz
Air Flow m3/min 15 / 14 20 / 18 25 / 22 31 / 27
Noise Level db 64 / 63 66 / 64 68 / 65 71 / 67
Intake Port Dia mm ø148 ø148 ø148 ø148
Dimensions mm(LxWxH) 660x330x475 675x350x508 780x390x534 804x420x561
Weight kg 31.2 34.2 40.4 48.6
