Products

Endoscope Camera
Professional High Definition Pipe Inspection System
HG2000

Our new high definition pipe inspection cameras are built for professionals to inspect drainage pipe, ventilation, water pipes, processing plants, plumbing, and NDT. Bendable & flexible camera neck makes it easily to pass pipe elbows and advance in pipes.

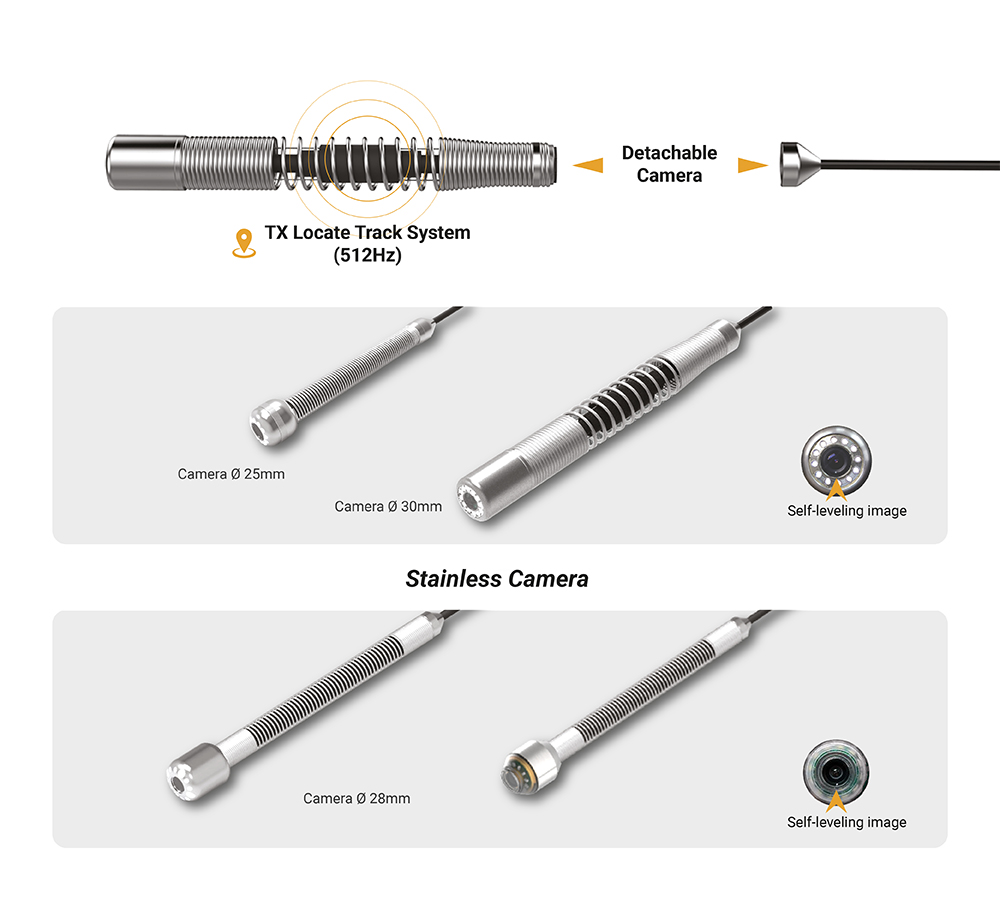

Detachable High Definition cameras , including 25mm, 28mm, 28mm self-leveling, 30 self-leveling cameras are available to choose. Robust carrying case

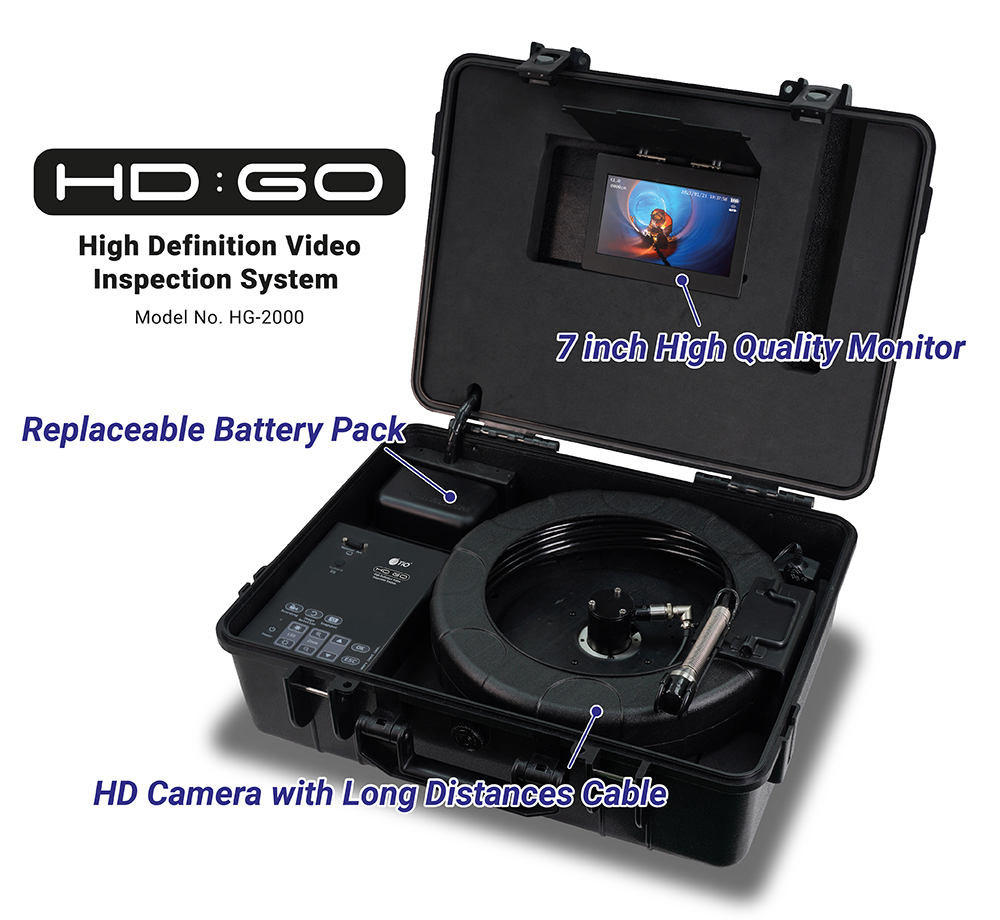

7 inch high definition color LCD screen
Spare battery
Detachable High Definition cameras 25mm, 28mm, 28mm self-leveling, 30mm self-leveling

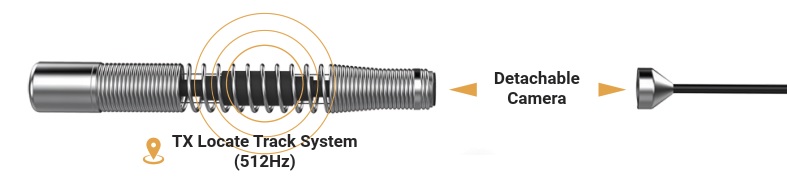

512Hz transmitter (optional)
Brightness adjustable LEDs

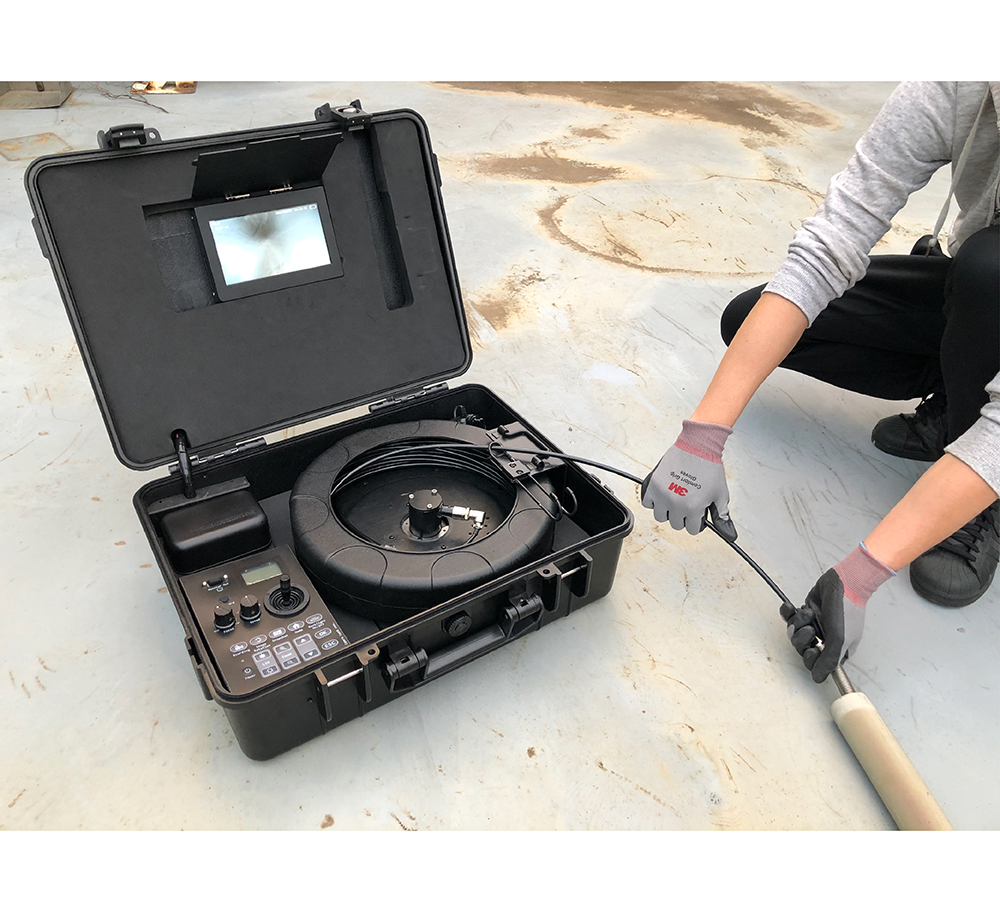

Robust carrying case
30M sturdy push cable
Optional accessories such as centering skids are available for purchase

Specification

  • Power: DC3.7V
  • Camera : CMOS
  • Diameter : 30mm
  • 512Hz transmitter
  • Light Source :  LEDs, dimmable
  • Resolution: 1280 X 720 Pixels
  • FOV : 165°
  • Best Viewing Distance : 5cm ~ ∞
  • Cable Length: 30M
  • IP Rating : IP68
  • Working & Storage temperature range: -20°C to 70°C
  • HG2000 is the newest innovation to use HD camera in a video inspection system. A true HD camera with crisp clear image provides
    professional users the best inspection facts for their maintenance jobs. Professionals can choose from 25mm, 28mm, or 30mm cameras based on pipe sizes and inspection needs. Locating function (optional) is integrated at the camera modules. With the sturdy push rod, HG2000 is the ideal heavy-duty video inspection system that can satisfy various applications in drainage pipes, ventilation conduits, NDT and plumbing inspection.
