Timer
Digital Timer
H2D, H3D, H4D
Characteristic
DIN Size W48 x H48mm
2, 3, 4 digits display with 7 segment LED display
Offered in a wide range voltage of AC/DC 12~60V or AC 100~240V
22 time ranges 9.9sec~99hrs (H2D) , 9.99sec~999hrs (H3D) , 99.99sec~9999hrs (H4D)
Output contact Mode A (2C) or Mode B (1A1C) can select by slide switch
Timing mode Up count or Down count (Y) option by user
Memory function available (M)
CE Certified

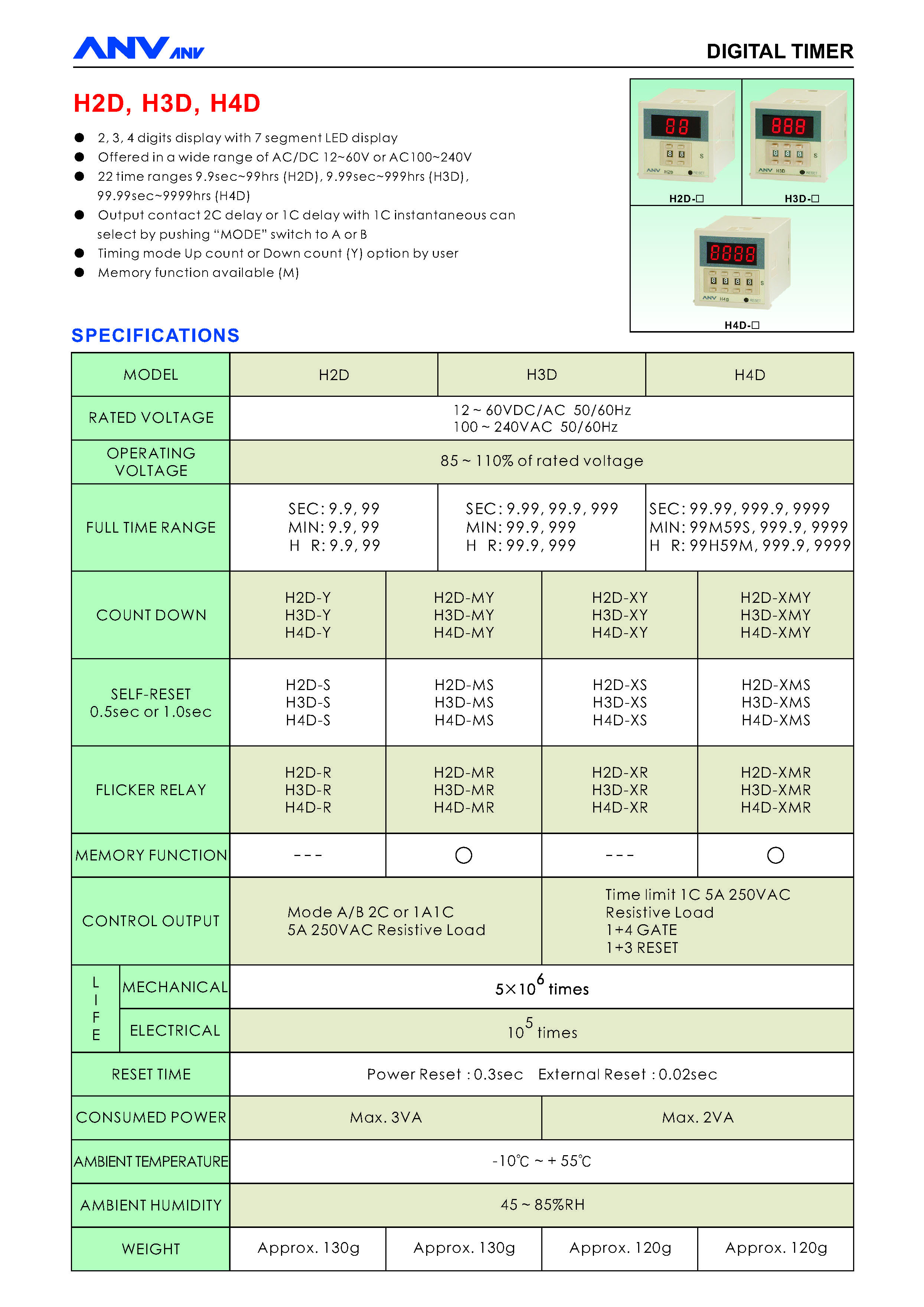

Specification
