Automatic Bar Feeder
Automatic Bar Feeder

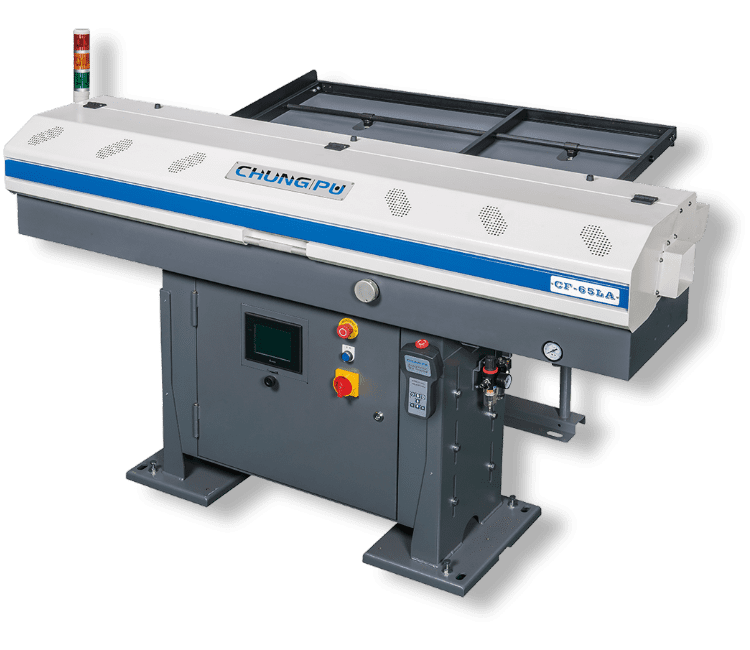

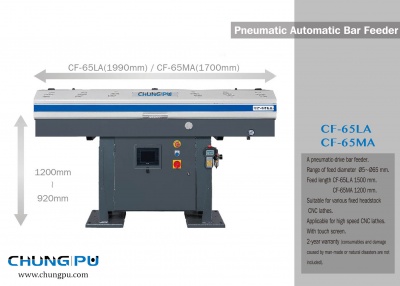

CF-65LA / CF-65MA

Rodless cylinder drive provides a stable and quiet action to prevent the bar from crashing the turret,
intelligent man-machine interface to provide convenient parameter settings.
Short residue, can reduce material waste.
Applicable to round type, tube type, and hexagonal bar.
Suitable for any fixed head CNC lathes.

Specification

Bar diameter 5mm~65mm
Type Fixed
Magazine capacity 61 Bar(10mm)
Power supply 220V
Feed drive Pneumatic
Controller & Screen Digital Interface PLC Control & HMI Touch Panel
Weight 260Kg / 230Kg
Length 1990mm / 1700mm
Height 1050mm~1350mm
Height of spindle 900mm~1200mm
Maximum bar length 1500mm/1200mm
Depth 1090mm
