Feature
To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
Concealed saw blade performs upward cutting. Single or multiple workpieces can be cut simultaneously.
While cutting, the oil mist splashes automatically for cooling and lubrication.
Cutting feed is driven by a air/hydraulic combination cylinder for extremely stable cutting speed.
The machine cabinet painting is baked by high temperature of 200 degree ( Powder coating ) for resisting bumping without paint peeling off.
The machine permits ± 0 ~ 45 degree cutting.
Suitable For Cutting Various Materials
Aluminum, brass, heat sink, PVC, plastic steel, bakelite, acrylic plastic, teflon, honeycomb board, wood and other non-ferrous metals.
Standard Equipment
16'' Saw blade x 1pc、Handle for changing saw blade
Optional:Automatic Rotary Angle, JIH-16R, JIH-20R,JIH20 24R,JIH-20 30R, JIH-20 36R
•CE Standard•Infeed, Outfeed Roller Table•Chip Collector•Horizontal Clamp•Horizontal Feeding•Automatic Rotary Angle •With Auto3000 for Automatic Positioning, Automatic Feeding(Push), Automatic Rotary Angle, Automatic Cutting • Saw Blade

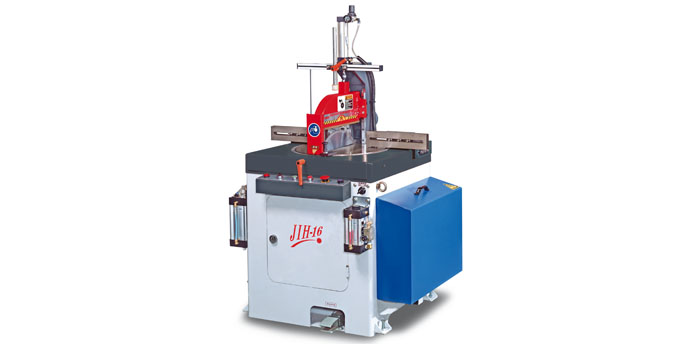

| Model | JIH-16 TYPE |
| Cutting Angle | +45° ~ 0° ~ -45° |
| Saw Blade Size | 16"x1"bore |
| Spindle Speed | 3,400 R.P.M.(60 HZ) |
| Motor | 3 HP |
| Air Pressure | 4-6 kgs/cm² |
| Table Size | 737x370mm |
| Table Height From Floor | 865mm |
| Net/Gross Weight | 400 / 500kgs |
| Machine Dimensions ( LxWxH ) |
1,000x880x1,610mm |
| Packing Dimensions ( LxWxH ) |
1,120x1,000x1,810mm |
