CNC Roll Grinder Machinery

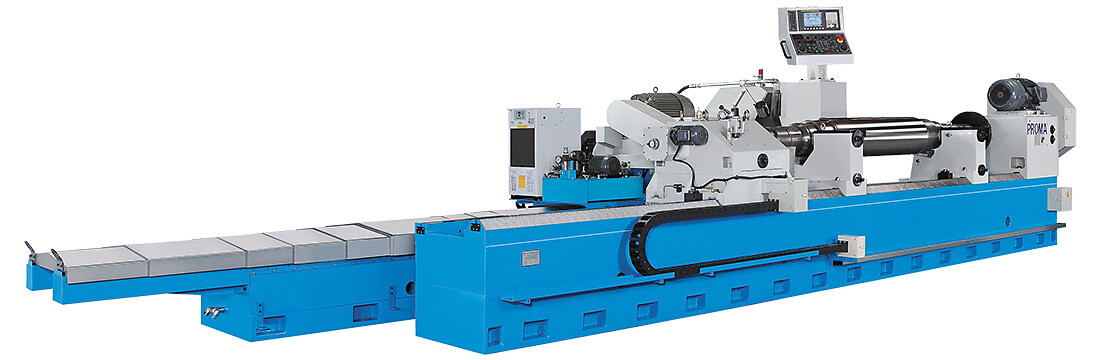

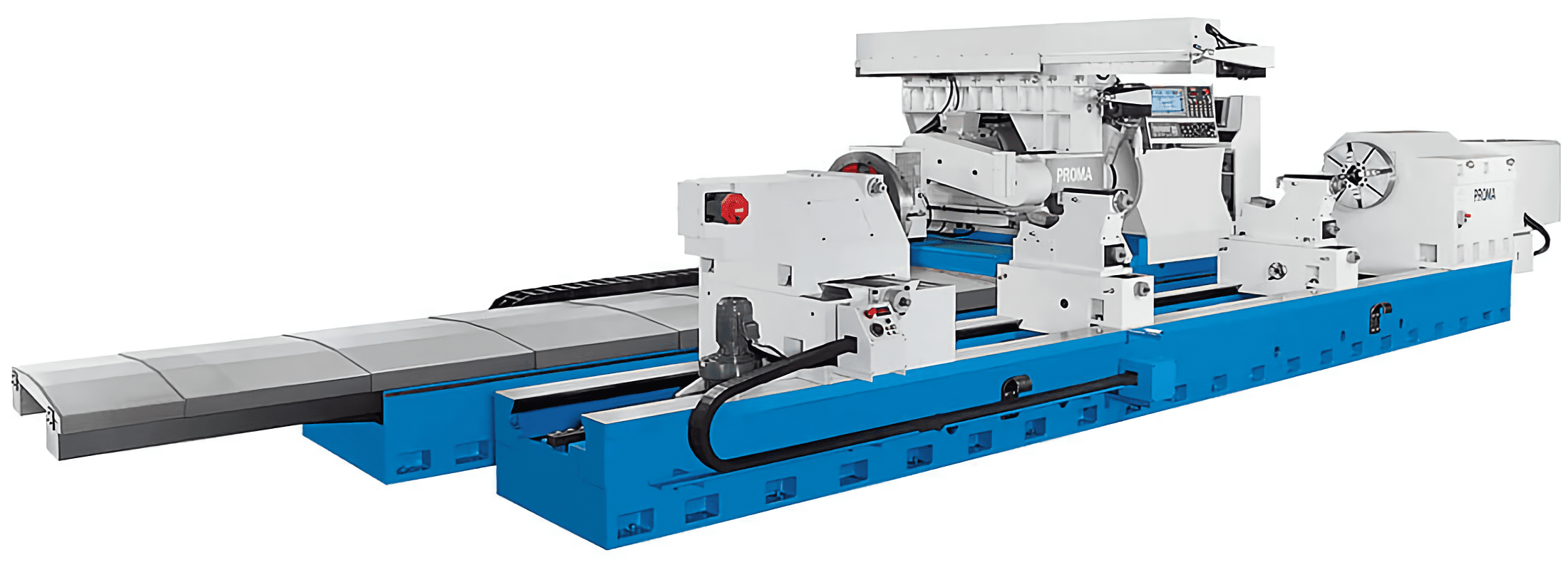

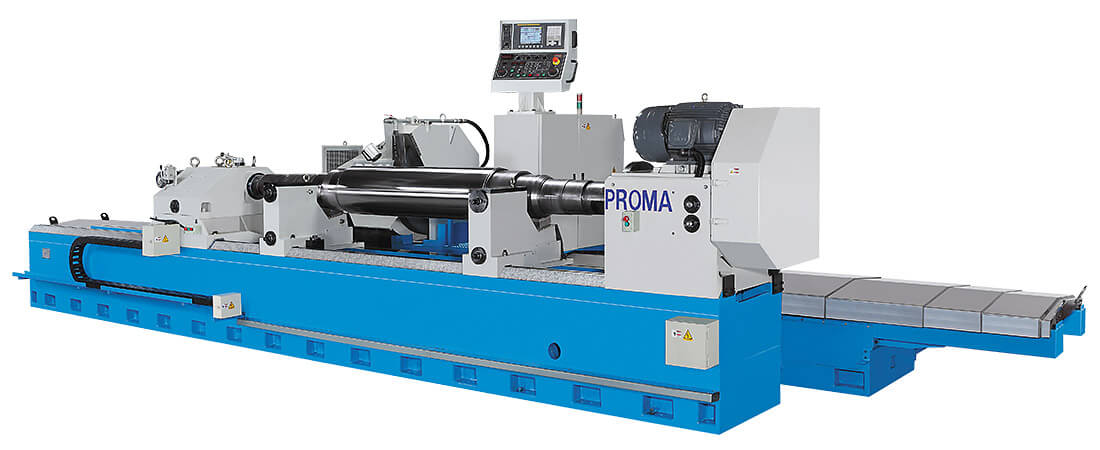

H-TYPE CNC Roll Grinder(Equipped With Measuring Device)
H-TYPE
Distance between c.c. : 5M, 6M, 7M, 8M, 10M, 12M
Swing over table : Ø1,300 Ø1,600 Ø2,000mm
Max weight of workpiece : 40,000kg
CNC Roll Grinder Machinery FANUC CNC-controller is applied to develop the roll grinding process automatically.
The system is configured with a humanized operation panel for user Which made the grinding operation became easy and precision.
All the operator need to do just call a cutting program from memory to per formed the grinding sequentially.
The crown grinding is also easy to get which include base arc curve SINE curve COSINE curve CVC curve and combined arc curve...

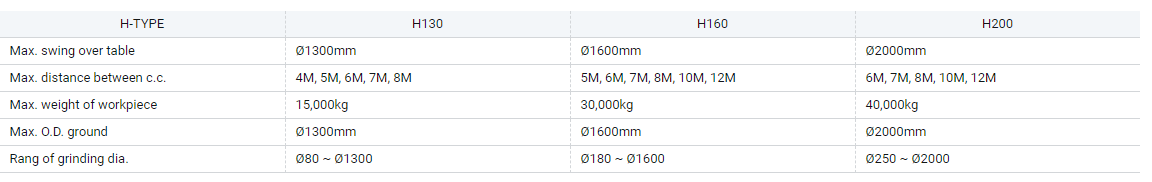

Specification
