Turn-Mill CNC

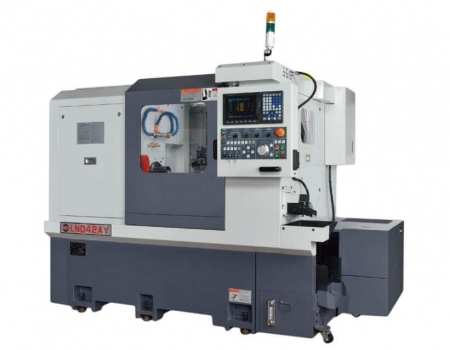

CNC Turret Type Automatic Lathe LND - AY SERIES
LND-42AY, LND-51AY, LND-65AY, LND-80AY, LND-100AY
CNC Turret Type Automatic Lathe
LND-AY series is A Single Spindle CNC Lathe with Y-Axis Slide 8 /12-Position Live Tools Turret for very complicate Turn - Mill machining. A most basic CNC Control System can be intalled for lowest cost machine available. Siemens-802D, Mitsubishi-E68 will be good for this application.
Specification
| MODEL | LND42AY | LND65AY | ||
| Capacity | ||||
| Collet bar capacity ,dia. (thru hele) | mm | Ø42 | Ø65 | |
| Max. turning length | mm | Ø355 | ||
| Max. turning dia. (3-Jaw Chuck) | mm | Ø165 (Ø6.5”) | Ø210 (Ø8.3”) | |
| Max. turning length | collet chuck | mm | 300 (11.8”) | |
| 3-Jaw chuck | mm | 280 (11”) | 254 (10”) | |
| Spindle | ||||
| Height of spindle center (approx.) | mm | 1100 | ||
| Spindle nose | - | ISO A2-5 | ISO A2-6 | |
| Collet chuck type | - | F48 | F72 | |
| 3-Jaw chuck size | inch | 6 | 8 | |
| Spindle thru hole / draw tube thru hole | mm | Ø53/Ø45 | Ø78/Ø66 | |
| Power of spindle motor | Kw | 9 | ||
| Max. spindle speed | rpm | 5000 | 4000 | |
| Main slide | ||||
| Z-Axis slide travel | mm | S8LT：300 / S12LT：300 | ||
| X-Axis slide travel | mm | S8LT：150 / S12LT：150 | ||
| Y-Axis slide travel | mm | ±55 (110) | ||
| Resolution | mm | 0.001 (0.0001”) | ||
| Turret | ||||
| Number of tool position (BARUFFALDI S12LT / LICO S8LT) | _ | 12 / 8 | ||
| Type of tool shank | mm | Ø25 / □20mm (Ø1” / □3/4”) | ||
| Servo Motors | ||||
| Rapid move (X-Axis / Z-Axis) | mm/ mim | 20 | ||
| Rapid move (Y-Axis) | mm/mim | 8 | ||
| Feed rate | M/mim | 0 – 10000 | ||
| X / Z - Axis power | Kw | 2.29 | ||
| Y- Axis power | Kw | 1.48 | ||
| Hydraulic tailstock | ||||
| Quill diameter | mm | Ø 50 | ||
| Center taper | _ | MT-3 / MT-4 | ||
| Quill stroke | _ | 80 | ||
| Manual stroke | mm | 185 | ||
| Hydraulic pressure | Kg/cm2 | 5-30 | ||
| Machine space , weight and power requirements | ||||
| Overall dimensions (L x W x H) | mm | 2780 x 1750 x 1950 | ||
| Machine weight | kgs | 3500 | 3600 | |
| Hydraulic tank capacity | liters | 35 | ||
| Hydraulic pump motor | liters | 0.75 | ||
| Coolant tank capacity | liters | 160 | ||
| Pump power | kW | 1.27 | ||
| Lubrication capacity | _ | 4 L,15 sec / 15min | ||
| Total power requirement | KVA | 20 / 25 | ||
- Collet chuck LND42AY F48 (Max. Ø42)
- Collet chuck LND65AY F72 (Max. Ø65)
- Hydraulic power system
- Coolant system
- Automatic lubrication system
- Parts catcher and parts conveyor
- Control cabinet heat exchanger
- Foot pedal for collet & chuck open/close
- Air jet system (include air blast)
- Work lamp
- Tool box & tool kits
- Automatic bar feeder interface
- Spindle brake and dividing system
- Tool turret 12 stations and tool holders
- Collet chuck LND42AY F48 (Max. Ø42)
- Collet chuck LND65AY F72 (Max. Ø65)
- Hydraulic power system
- Coolant system
- Automatic lubrication system
- Parts catcher and parts conveyor
- Control cabinet heat exchanger
- Foot pedal for collet & chuck open/close
- Air jet system (include air blast)
- Work lamp
- Tool box & tool kits
- Automatic bar feeder interface
- Spindle brake and dividing system
- Tool turret 12 stations and tool holders
