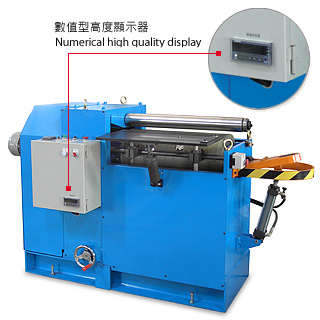

Hydraulic Rolling Machine
Hydraulic Rolling Machine
CMR
APPLICATION :
Can automatically roll the flat plate into round shape such as steel bucket, coffee pot, water heater, duct, tire's steel ring, steel bottle, submerged motor, light decoration, discharge pipe, internal part in the drinking fountain, etc...
Adopt twin-shaft type spindle. Rolling is made through hydraulic system so that the pressure is smooth and the workpiece can be formed stably. High roundness.
The driving wheel which is cover with rubber can lengthen the spindle's life and also prevent the workpiece from scraping.
Can select the required model and additional sleeve supporting base as per the length of workpiece.
Specification
Model No. | Working Length | Rolling Plate's Thickness | Input Power |
CMR-600 | 600mm | 0.3~4mm | 220V |
CMR-800 | 800mm | ||
CMR-1000 | 1000mm | ||
CMR-1300 | 1300mm | ||
CMR-1600 | 1600mm |
