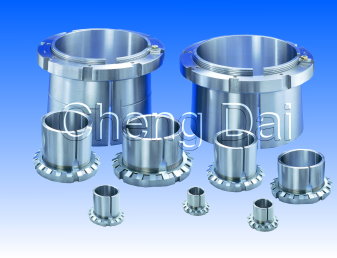

Adapter Sleeves
Inch Adapter Sleeve 【Inch】
SNW, SNP Series
Description
Professional ADAPTER SLEEVE manufacturer of Taiwan in Hardware Industry in Asia. Not only a Professional BEARING Maker but also a Adapter Sleeve Supplier, Adapter Sleeve Exporter, Adapter Sleeve Agent, Adapter Sleeve Distributor to meet your goal.
SNW, SNP Series (S3024~S30/950), (S3156~S31/850), (S3256~S32/750)
Inch Adapter Sleeve 【Inch】

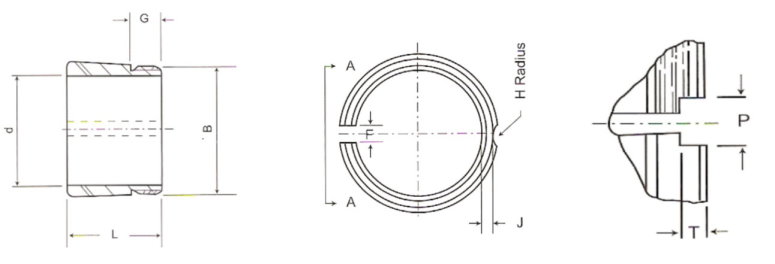

Specification
Dimensions in inches.
Inch |
Bore Dia. d max. |
Length L min. |
Threads | G max. |
Slot Width F min. |
Relief | Lock Plate Slot |
||||||||
S3000 | S3100 | S3200 | Major Dia. B nom. |
No. per lnch K1 M1 |
S3000 | S3100 | J max. |
H min. |
P min. |
T min. |
|||||
S3024 | - | - | 4.192 | 2.937 | - | - | 4.716 |
12
|
1.260 | - | 0.428 | - | - | - | - |
S3026 | - | - | 4.442 | 3.227 | - | - | 5.106 |
12
|
1.323 | - | 0.552 | 0.281 | 0.125 | - | - |
S3028 | - | - | 4.942 | 3.330 | - | - | 5.497 |
12
|
1.385 | - | 0.740 | - | - | - | - |
S3030 | - | - | 5.192 | 3.482 | - | - | 5.888 |
12
|
1.416 | - | 0.740 | 0.281 | 0.125 | - | - |
S3032 | - | - | 5.442 | 3.701 | - | - | 6.284 |
8
|
1.478 | - | 0.740 | 0.281 | 0.125 | - | - |
S3034 | - | - | 5.942 | 4.009 | - | - | 6.659 |
8
|
1.510 | - | 0.865 | - | - | - | - |
S3036 | - | - | 6.442 | 4.327 | - | - | 7.066 |
8
|
1.541 | - | 0.865 | - | - | - | - |
S3038 | - | - | 6.942 | 4.402 | - | - | 7.472 |
8
|
1.604 | - | 0.865 | - | - | - | - |
S3040 | - | - | 7.192 | 4.740 | - | - | 7.847 |
8
|
1.666 | - | 0.990 | - | - | - | - |
S3044 | - | - | 7.942 | 5.120 | - | - | 8.628 |
8
|
1.760 | - | 0.990 | - | - | - | - |
S3048 | - | - | 8.942 | 5.422 | - | - | 9.442 |
6
|
1.978 | - | 0.302 | - | - | 1.125 | 0.500 |
S3052 | - | - | 9.444 | 6.009 | - | - | 10.192 |
6
|
2.135 | - | 0.302 | - | - | 1.188 | 0.500 |
S3056 | S3156 | S3256 | 10.444 | 6.181 | 7.756 | 8.937 | 11.004 |
6
|
2.229 | 2.229 | 0.302 | - | - | 1.250 | 0.500 |
S3060 | S3160 | S3260 | 10.944 | 6.717 | 8.370 | 9.630 | 11.785 |
6
|
2.291 | 2.291 | 0.302 | - | - | 1.375 | 0.500 |
S3064 | S3164 | S3264 | 11.944 | 6.936 | 9.101 | 10.361 | 12.562 |
6
|
2.385 | 2.385 | 0.302 | - | - | 1.438 | 0.500 |
S3068 | S3168 | S3268 | 12.444 | 7.533 | 9.777 | 11.116 | 13.303 |
5
|
2.541 | 2.541 | 0.302 | - | - | 1.500 | 0.500 |
S3072 | S3172 | S3272 | 13.444 | 7.569 | 9.852 | 11.427 | 14.134 |
5
|
2.541 | 2.541 | 0.365 | - | - | 1.500 | 0.500 |
S3076 | S3176 | S3276 | 13.944 | 7.733 | 10.056 | 11.867 | 14.921 |
5
|
2.666 | 2.666 | 0.365 | - | - | 1.500 | 0.500 |
S3080 | S3180 | S3280 | 15.006 | 8.401 | 10.449 | 12.654 | 15.709 |
5
|
2.823 | 2.885 | 0.365 | - | - | 1.625 | 0.500 |
S3084 | S3184 | S3284 | 15.756 | 8.488 | 11.402 | 13.292 | 16.496 |
5
|
2.823 | 2.948 | 0.365 | - | - | 1.625 | 0.500 |
S3088 | S3188 | S3288 | 16.506 | 9.100 | 11.817 | 13.943 | 17.283 |
5
|
3.228 | 3.228 | 0.365 | - | - | 1.812 | 0.500 |
S3092 | S3192 | S3292 | 17.006 | 9.336 | 12.368 | 14.573 | 18.071 |
5
|
3.228 | 3.323 | 0.365 | - | - | 1.812 | 0.500 |
S3096 | S3196 | S3296 | 18.006 | 9.446 | 12.714 | 15.155 | 18.858 |
5
|
3.260 | 3.354 | 0.365 | - | - | 1.812 | 0.500 |
S30/500 | S31/500 | S32/500 | 18.506 | 9.838 | 13.657 | 16.491 | 19.646 |
5
|
3.573 | 3.666 | 0.365 | - | - | 1.812 | 0.500 |
S30/530 | S31/530 | S32/530 | 19.506 | 10.579 | 14.004 | 17.271 | 20.827 |
4
|
3.573 | 3.666 | 0.490 | - | - | 1.812 | 0.500 |
S30/560 | S31/560 | S32/560 | 21.006 | 11.222 | 14.569 | 17.915 | 22.008 |
4
|
3.823 | 3.916 | 0.490 | - | - | 1.812 | 0.500 |
S30/600 | S31/600 | S32/600 | 22.006 | 11.451 | 15.388 | 18.853 | 23.583 |
4
|
3.916 | 3.916 | 0.490 | - | - | 1.812 | 0.500 |
S30/630 | S31/630 | S32/630 | 24.006 | 11.924 | 15.979 | 19.798 | 24.764 |
4
|
3.916 | 3.916 | 0.490 | - | - | 2.000 | 0.500 |
S30/670 | S31/670 | S32/670 | 25.006 | 12.835 | 17.008 | 21.024 | 26.339 |
4
|
4.104 | 4.104 | 0.490 | - | - | 2.000 | 0.625 |
S30/710 | S31/710 | S32/710 | 26.506 | 13.509 | 17.801 | 21.935 | 27.914 |
3
|
4.541 | 4.635 | 0.490 | - | - | 2.000 | 0.625 |
S30/750 | S31/750 | S32/750 | 28.006 | 14.093 | 18.620 | 22.982 | 29.489 |
3
|
4.541 | 4.635 | 0.490 | - | - | 2.000 | 0.625 |
S30/800 | S31/800 | - | 29.506 | 14.408 | 19.014 | - | 31.457 |
3
|
4.541 | 4.635 | 0.490 | - | - | 2.000 | 0.625 |
S30/850 | S31/850 | - | 31.506 | 14.991 | 20.030 | - | 33.426 |
3
|
4.573 | 4.760 | 0.490 | - | - | 2.000 | 0.625 |
S30/900 | - | - | 33.506 | 15.681 | - | - | 35.394 |
3
|
4.948 | - | 0.490 | - | - | 2.000 | 0.625 |
S30/950 | - | - | 36.506 | 16.492 | - | - | 37.363 |
3
|
4.948 | - | 0.490 | - | - | 2.000 | 0.625 |
