Standard flat-surface precise lapping\ polishing machine
Standard flat-surface precise lapping\ polishing machine

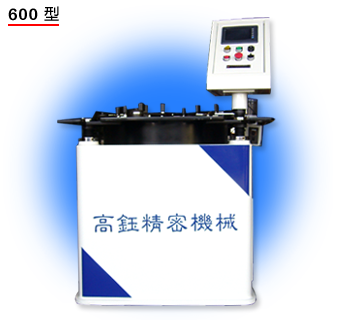

600





Specifications Type 600
Disk outer diameter 610 mm
Maximum admitted diameter of
work piece
229 mm
Minimum work
piece thickness
0.2 mm
Surface precision 0.2-0.5u
Rotating Speed 10-60 R.P.M.
Main shaft horsepower(HP) 5HP variable speed
pump’s horsepower(HP) 1/4 HP
Automatic controller 0~999 min
Net weight(NW) 500 Kg
Mechanical Size 1200*1200*800 mm
Standard accessories according to the
actual equipment
*Specification, size, and equipment will be subjected to change without prior notice

Specification

 Optional equipment

1. Disk cooling water circulatory system
2. Self-timer fixed amount spraying device
3. Stainless steel conditioning wheel
4. Diamond disk repairer
5. Precision ruler
6. Granite examination platform
7. Electrical control system (with program control and a 5.7 " color touch screen)
